This is the developer's kit for the moteus-x1 brushless servo controller.

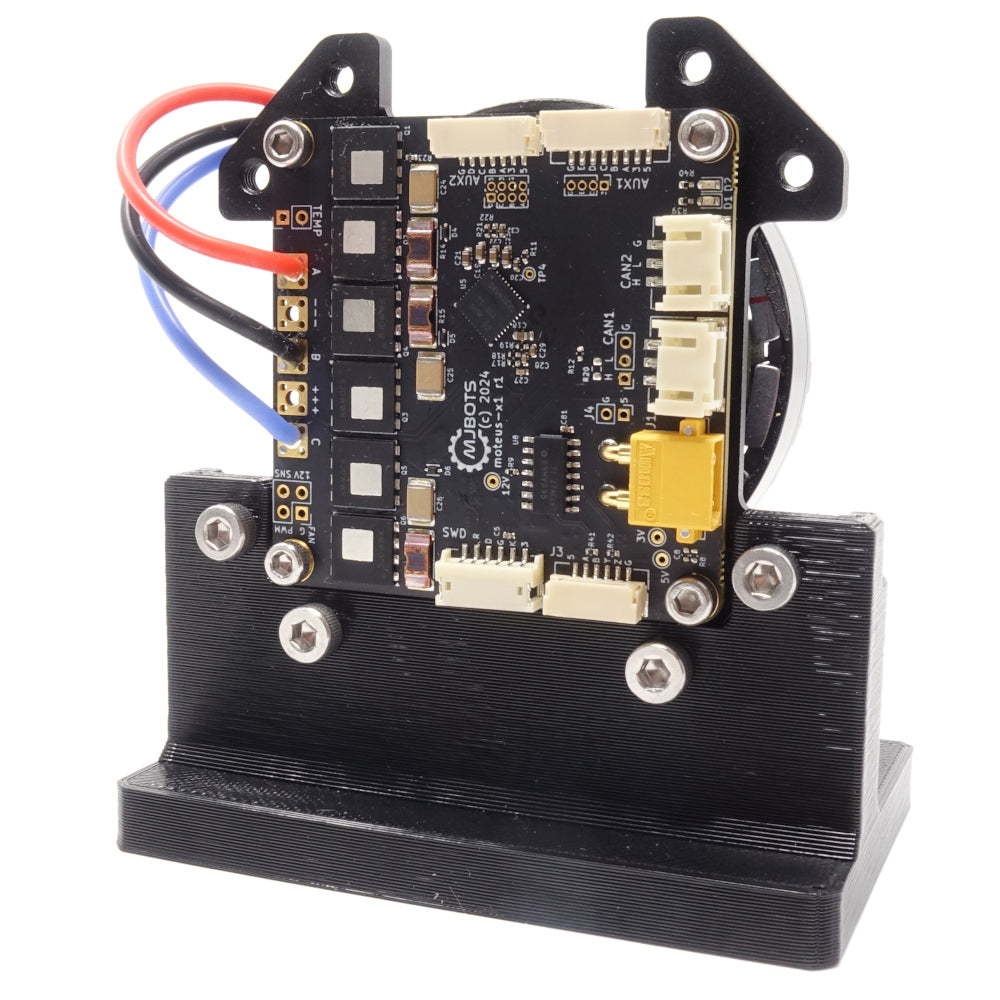

Specifications for the moteus-x1 controller (also available for purchase separately):
- 3 phase brushless FOC based control
- Voltage Input: 10-54V (<=12S)
- Temperature: -40-85C
- Peak phase current: 120A
- Continuous phase current: 25A / 60A (w/o and w/ thermal management)
- Peak Electrical Power: 1.3kW @ 36V
- Mass: 23.7g
- Control rate: 15-30kHz
- PWM switching rate: 15-60kHz
- 170 MHz 32 bit STM32G4 microcroprocessor
- Max electrical frequency: 3kHz
- Dimensions: 56x56x10mm - 2D CAD (pdf) / 3D Model (STEP)
- Board Mountable: Power, CAN, motor, 12V fan, thermistor, and AUX2
- Communications: 5Mbps CAN-FD
- Power Connector: XT30PW-M
- Data Connector: 2x JST PH-3
- Auxiliary connectors (JST GH7/8) with: SPI, UART, GPIO, ADC, Quadrature, Hall, and I2C support
- RS422 connector (JST GH6)
- 3.3V/150mA and 5V/200mA power available for external peripherals
- Open source firmware (Apache 2.0): https://github.com/mjbots/moteus

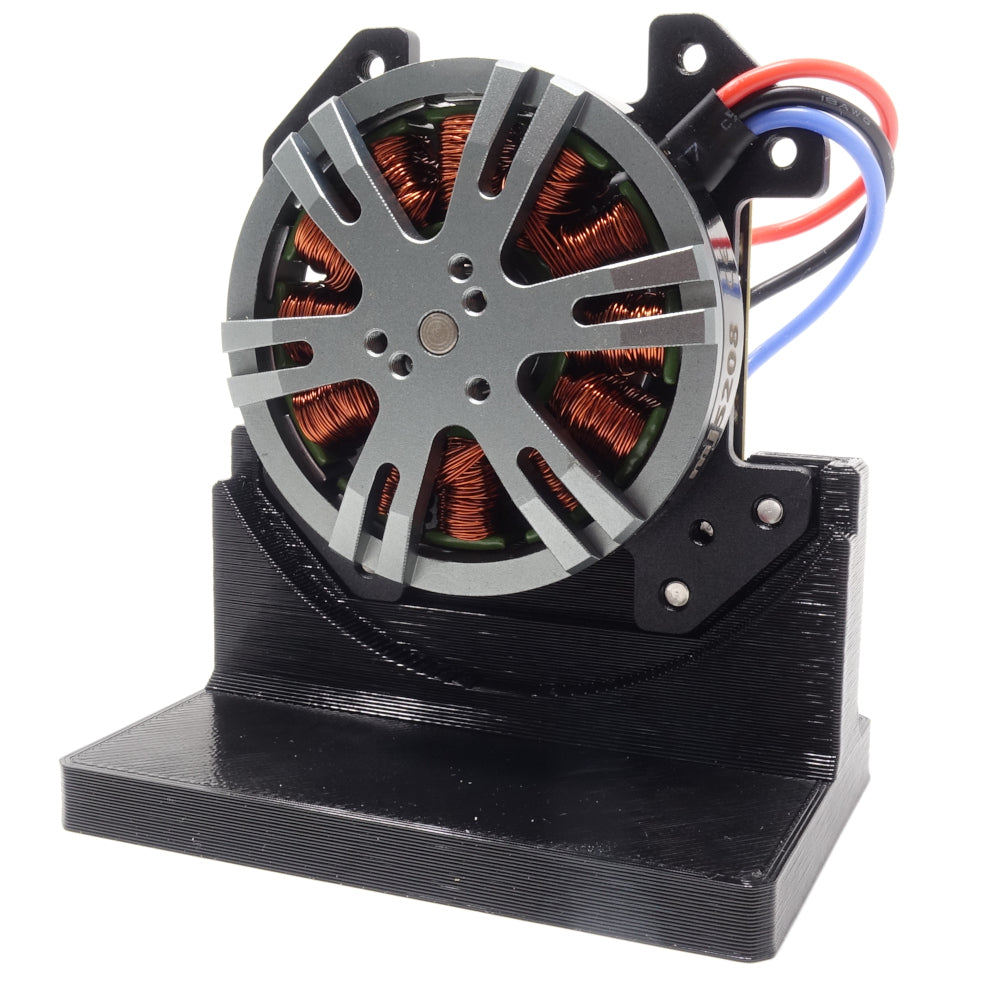

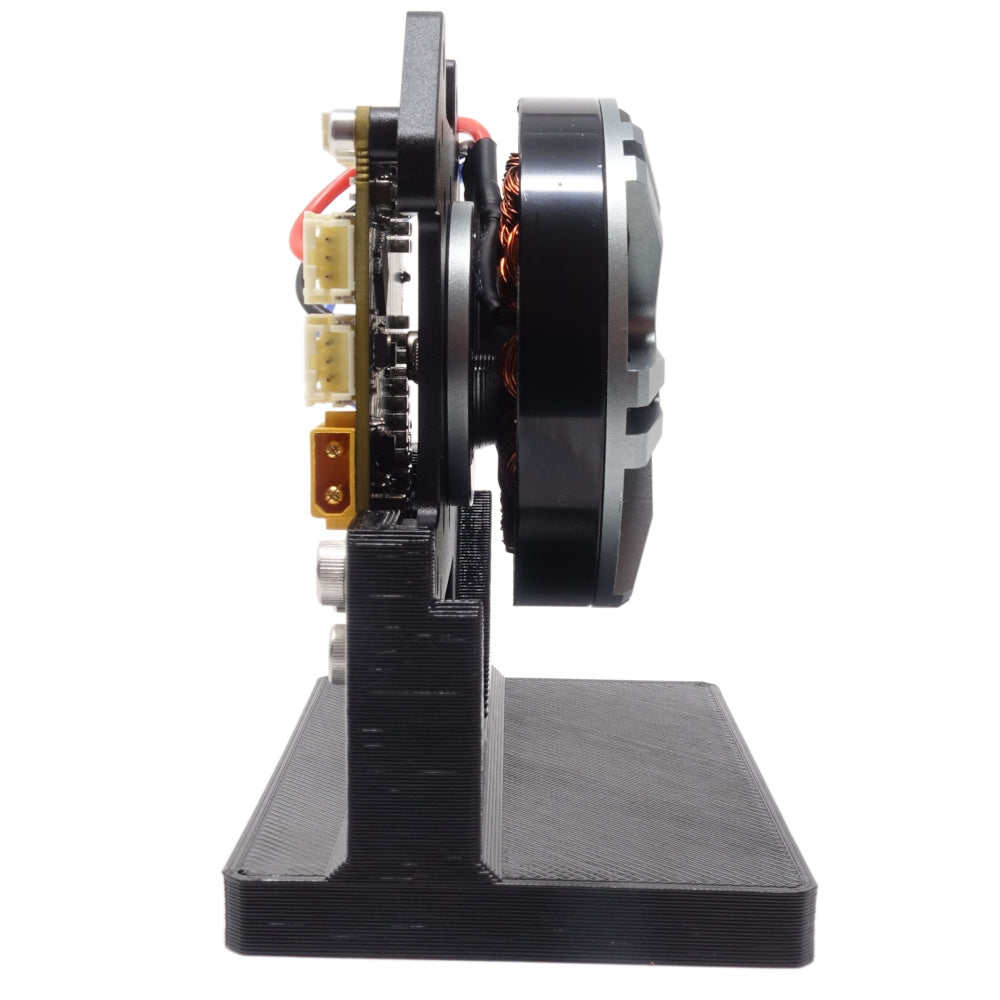

In addition, this is a development kit that includes everything you need to power up and evaluate the controller:
- An mj5208 motor
- Bracket to mount the moteus controller to the motor
- Desk stand to hold the motor and controller - STL file

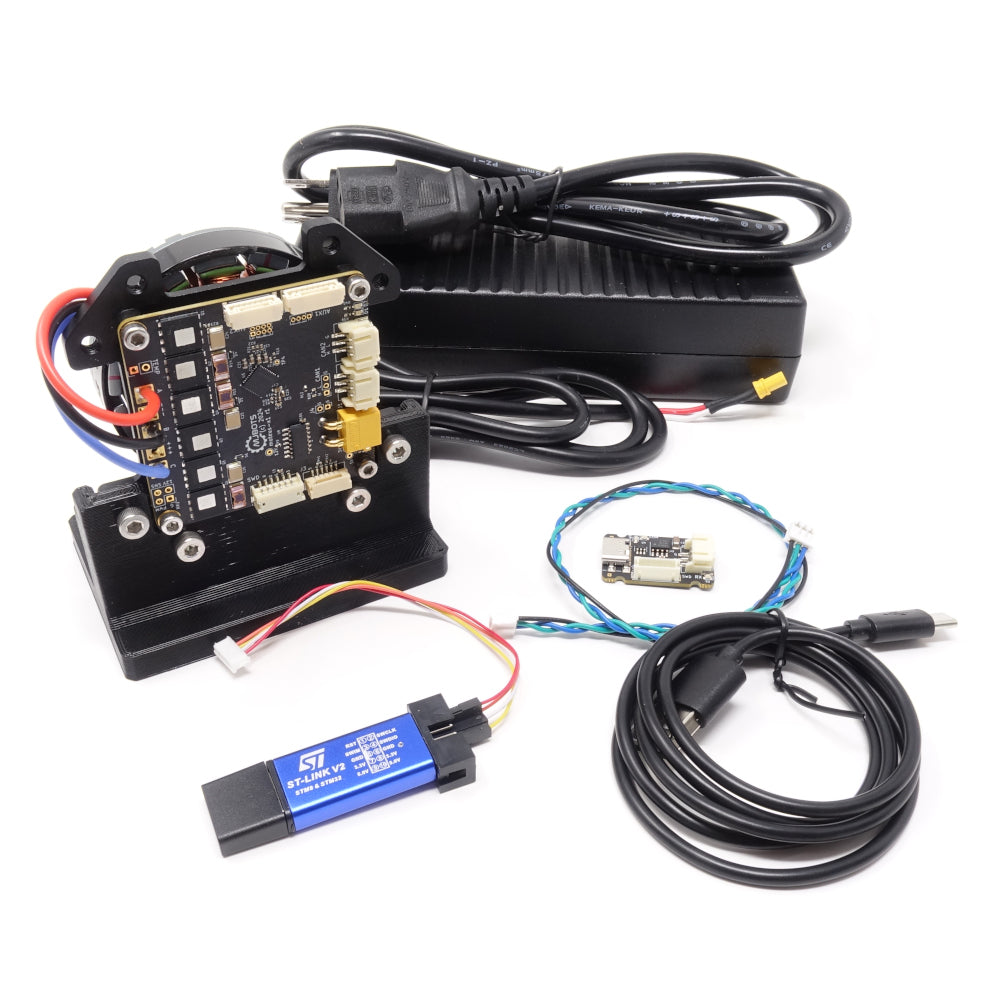

- 24V 5A power supply with universal input voltage range and XT30U-F connector. A US plug to IEC C13 cable is included, any C13 cable could be used in other countries.
-
mjcanfd-usb-1x w/ USB cable
-
JST PH-3 cable for CAN communication
- USB STM32 programmer w/ moteus JST ZH-6 connector
- 1 mating XT30 connector, 1 mating JST-PH3 housing with crimp terminals, and a 6mm diametric disc magnet
Optional accessories:
- Daisy chain CAN-FD wiring: JST PH3 cables / Termination resistors
- Auxiliary port connector housings are available: GH6 (for RS422), GH7 (for AUX2), GH8 (for AUX1) and pre-crimped wire terminals for all GH connector housings
- A heat spreader can be used to improve thermal performance
Documentation is available in github and youtube:
