mjbots

mjcanfd-usb-1x

mjcanfd-usb-1x

Regular price $39.00 USD
Regular price Sale price $39.00 USD
Sale Sold out
Shipping calculated at checkout.
475 In Stock

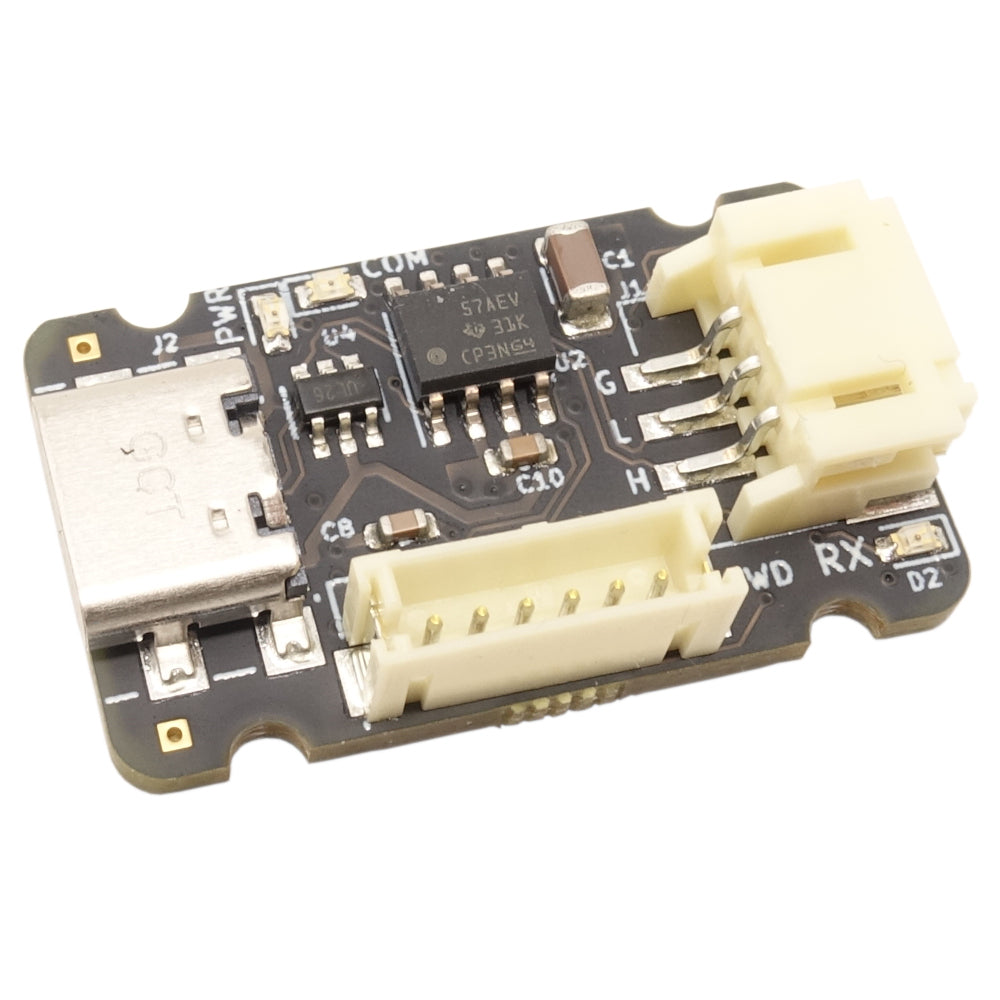

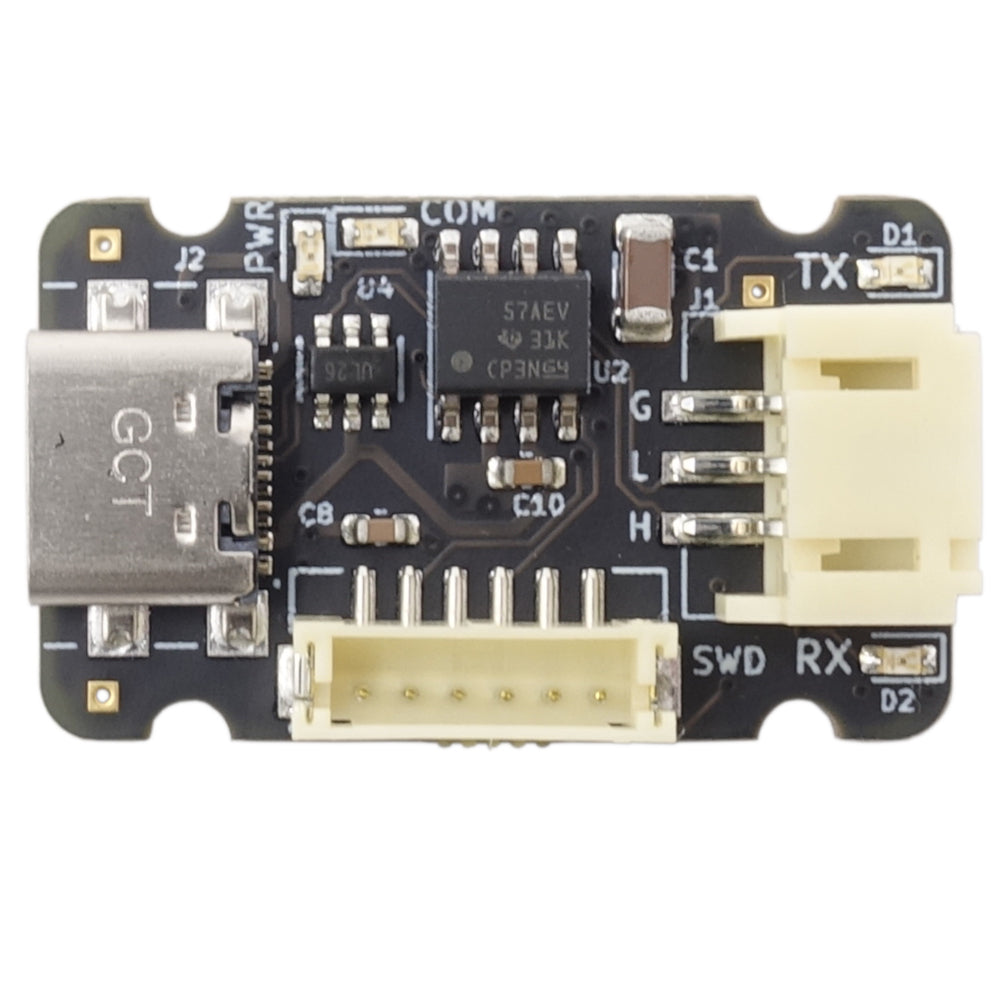

The mjcanfd-usb-1x device provides a USB 2.0 interface to a CAN-FD bus.  The CAN-FD standard supports data frames up to 64 bytes and data rates up to 12Mbit.

Features:

  • CAN-FD (ISO 11898-1:2015)
  • Presents as a USB CDC device (a virtual serial port), with a simple line based protocol for compatibility with all operating systems
  • Software selectable termination

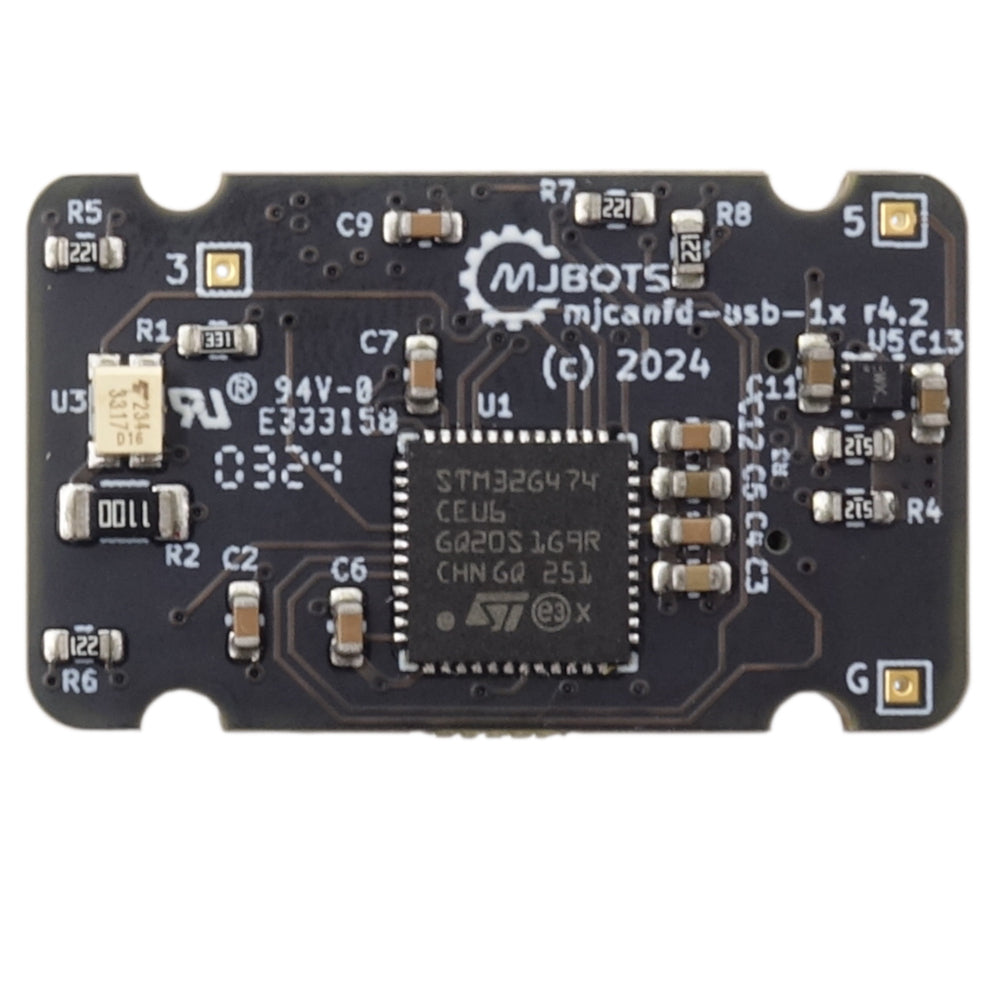

  • STM32G4 based open source firmware, programming port included
  • This provides galvanic isolation of +- 58V on the CAN lines, the ground connection is not isolated from USB
  • Dimensions: 30mm x 18mm
  • Mass: 3.4g
Connectors:
  • PC: USB-C
  • CAN: JST PH3
