mjbots

moteus-x1 servo bracket

moteus-x1 servo bracket

Regular price $27.00 USD
Regular price Sale price $27.00 USD
Sale Sold out
Shipping calculated at checkout.
95 In Stock

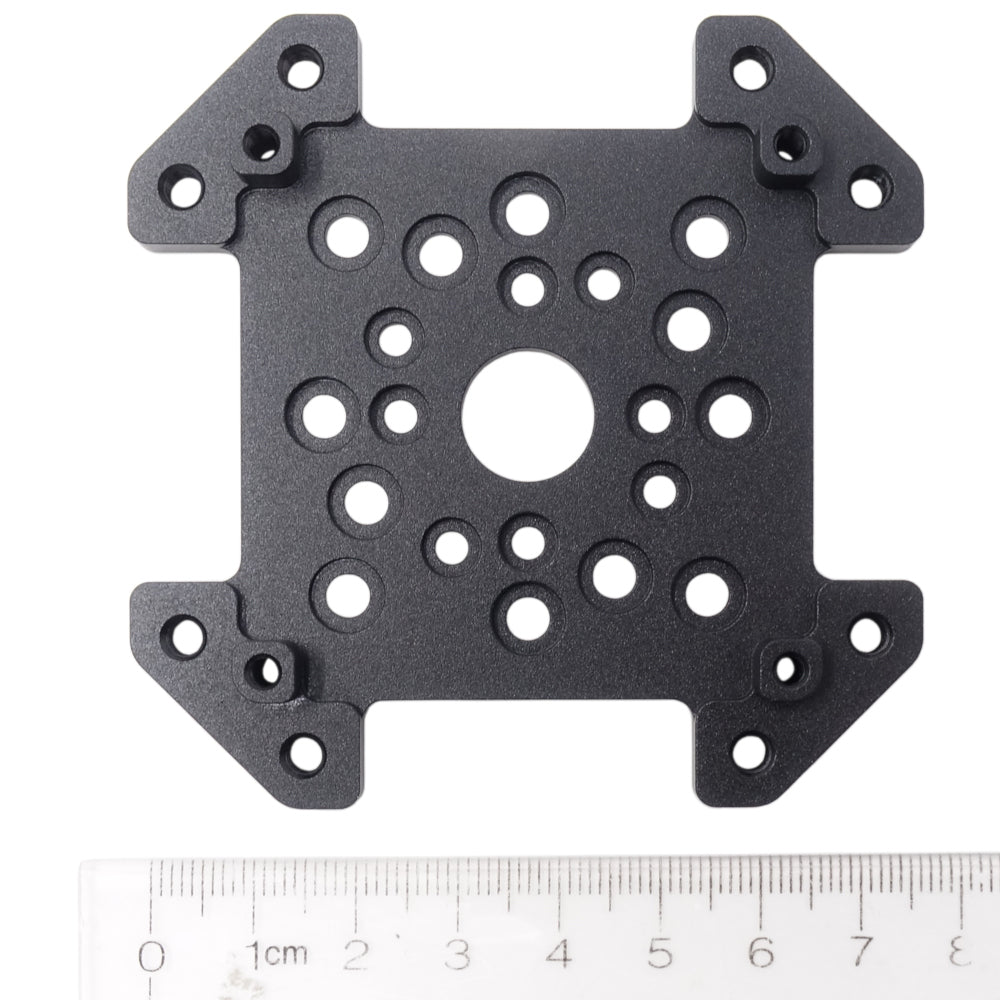

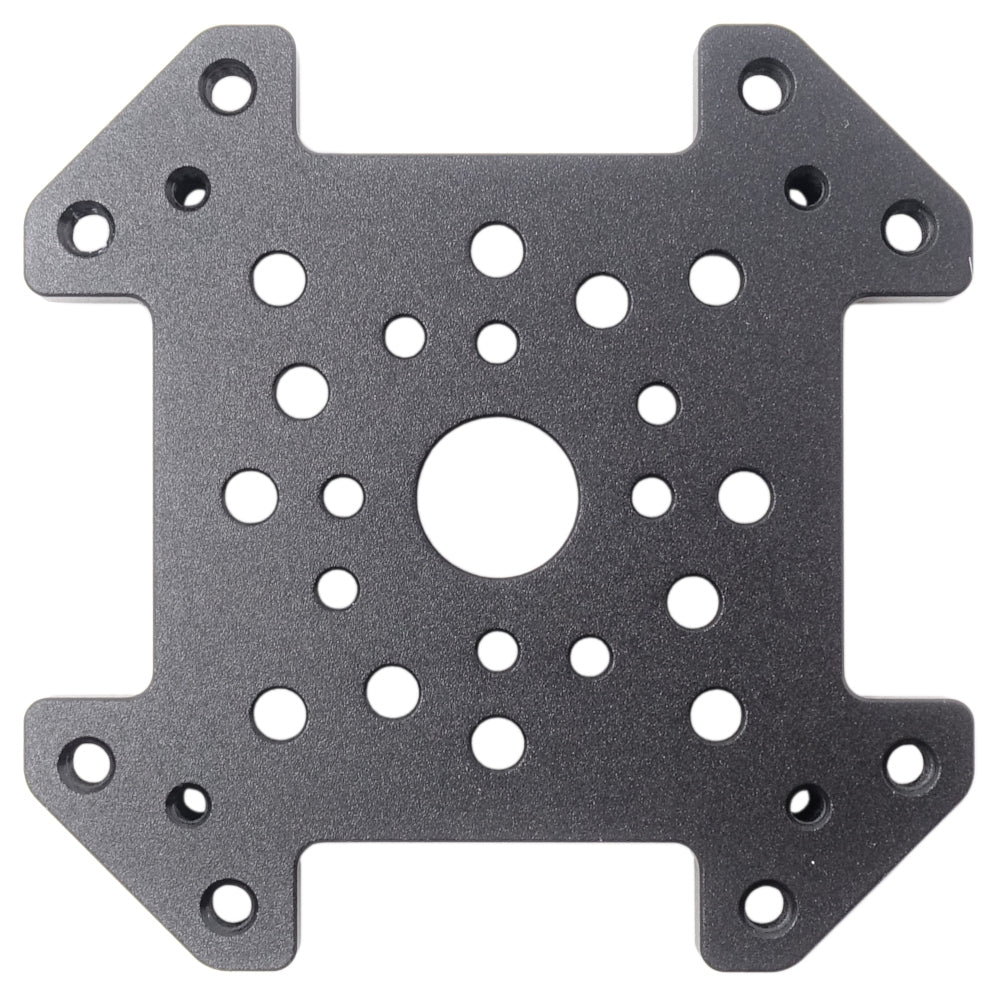

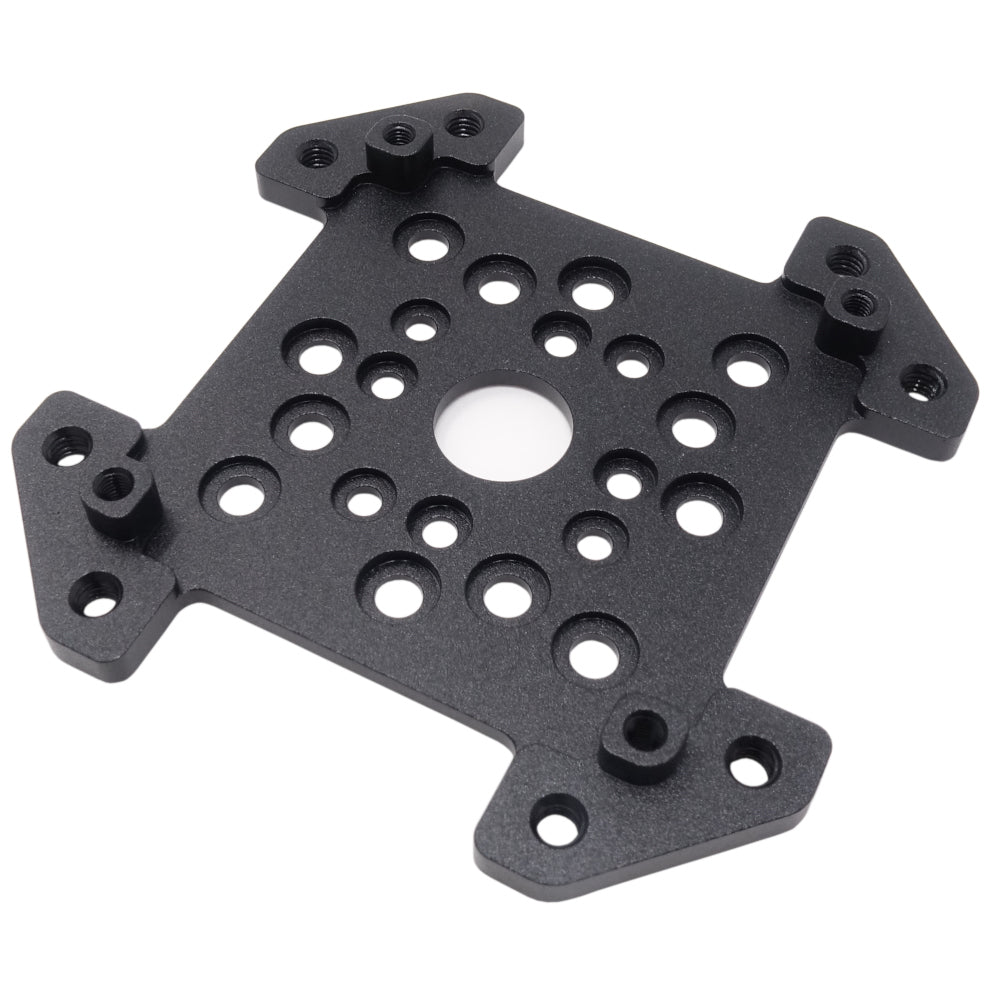

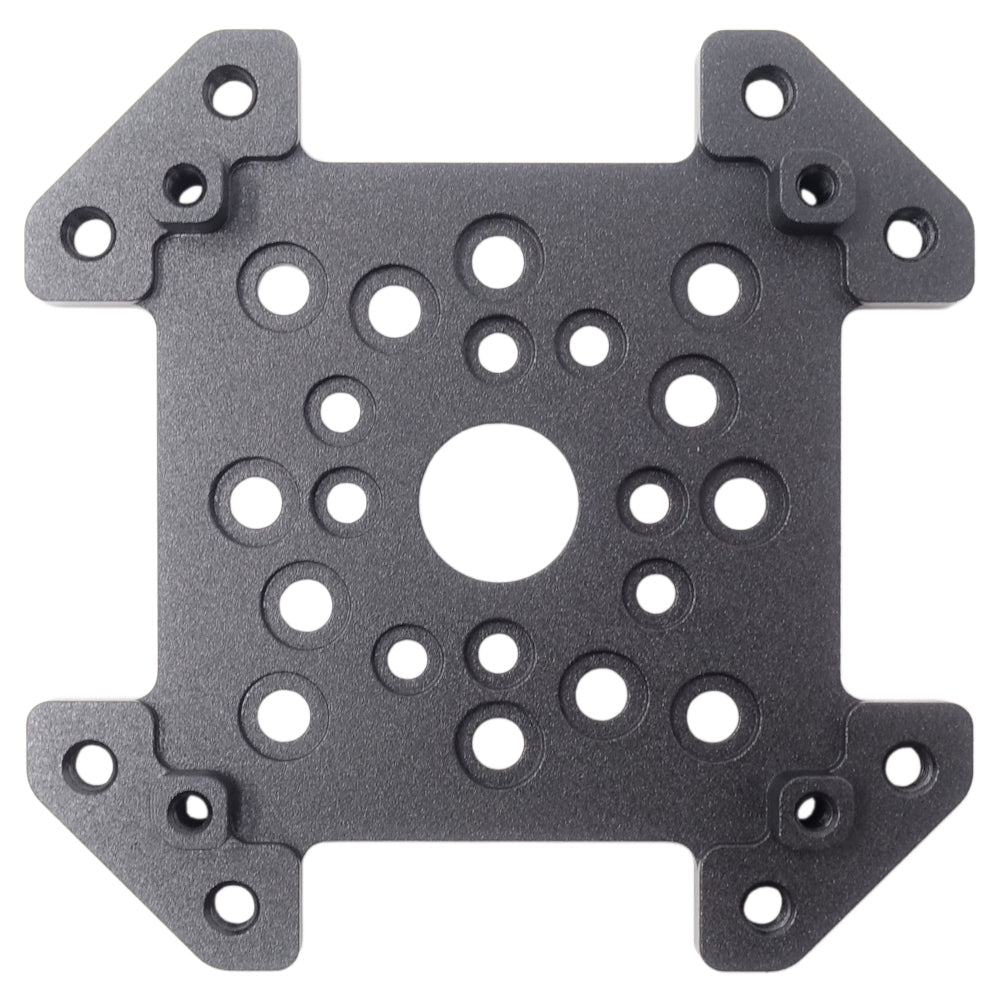

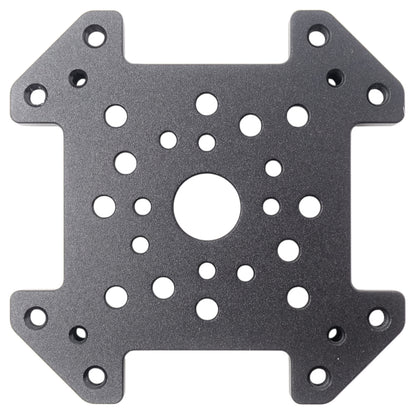

This machined aluminum bracket can be used to mount the moteus x1 controller to a motor.  Motors with the following bolt patterns are compatible:

  • 4x M3 on 25mm radius
  • 4x M3 on 30mm radius
  • 4x M4 on 36mm radius
  • 4x M4 on 40mm radius
  • 4x M4 on 50mm radius

It has threaded M4 holes on the outside perimeter to mount the bracket into a larger assembly.

This bracket is used in the moteus x1 developer kit.

  • Outside dimensions: 77mm x 77mm x 8mm
  • Mass: 28.0g
  • CAD: STEP file
