mjbots
moteus-x1
moteus-x1
Regular price
$169.00 USD
Regular price
Sale price
$169.00 USD
Unit price
/
per
Shipping calculated at checkout.
Quantity | Unit Price |
---|---|
10 - 99 | $161.00 |
100 - | $153.00 |
Couldn't load pickup availability

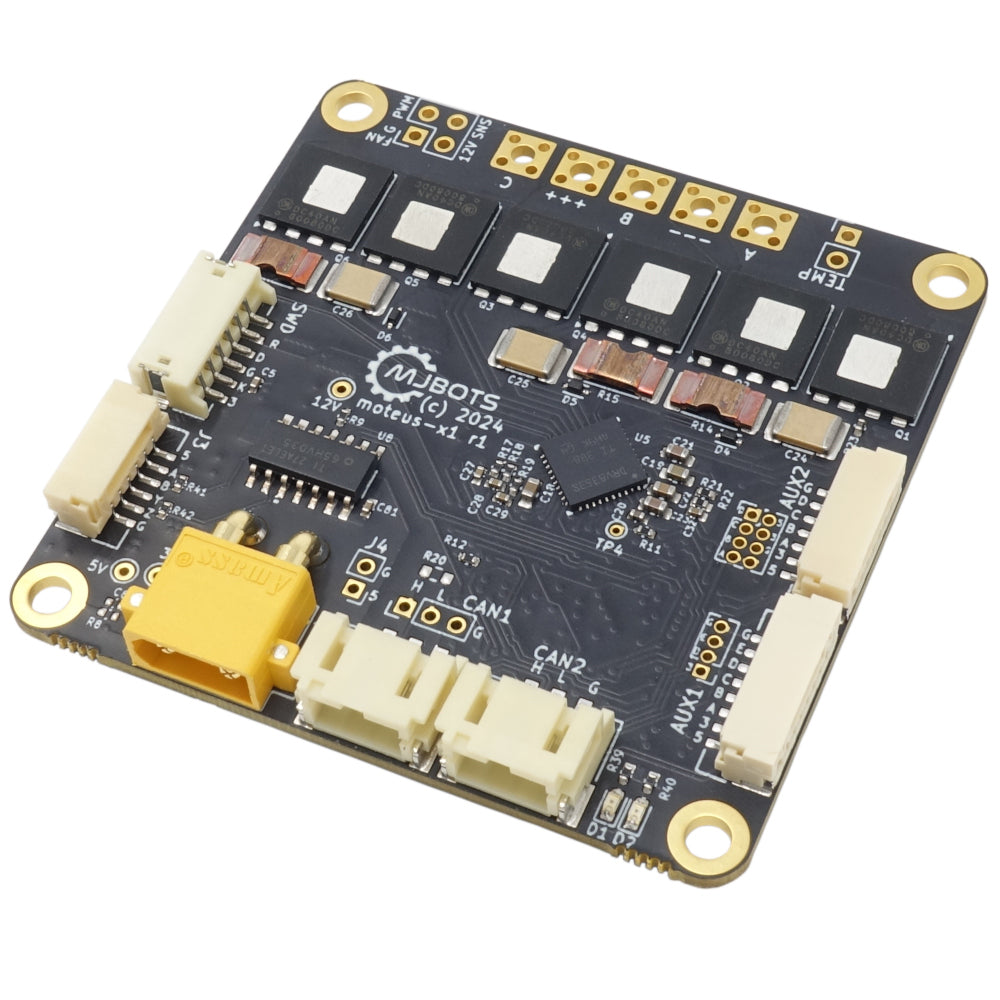

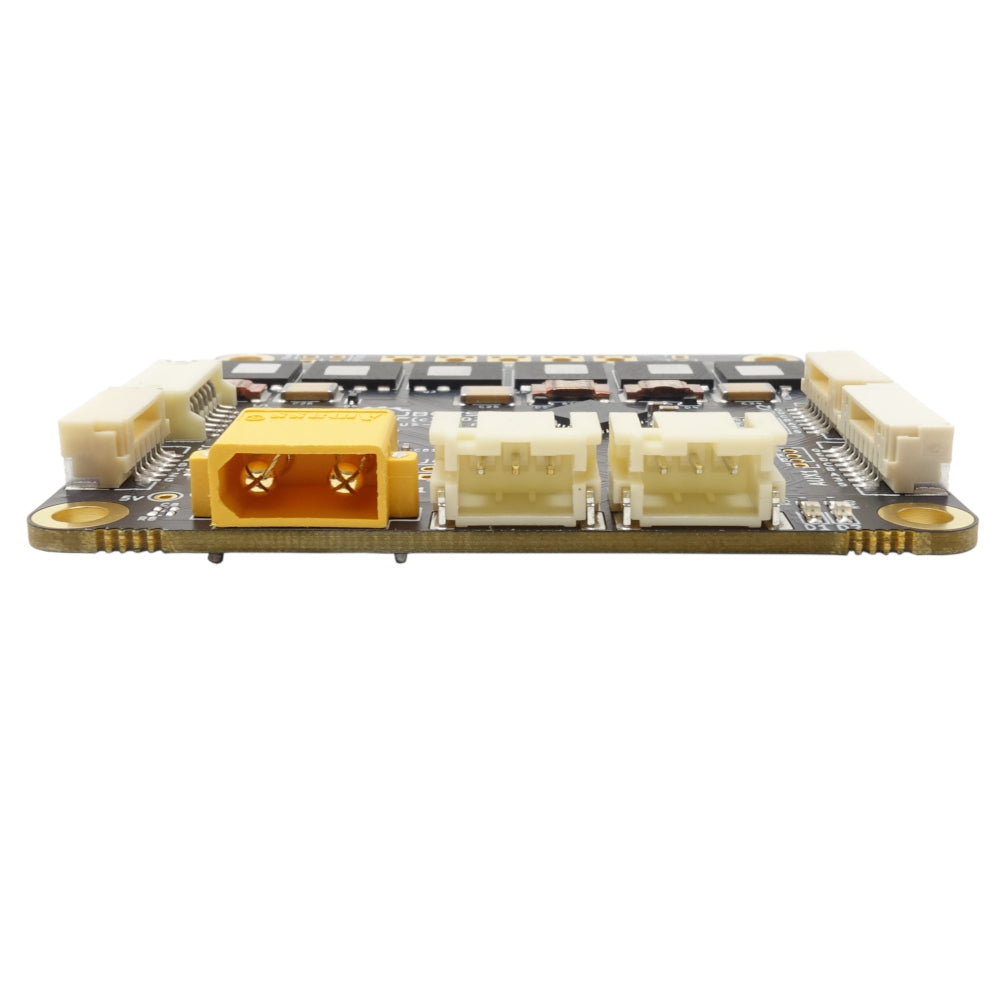

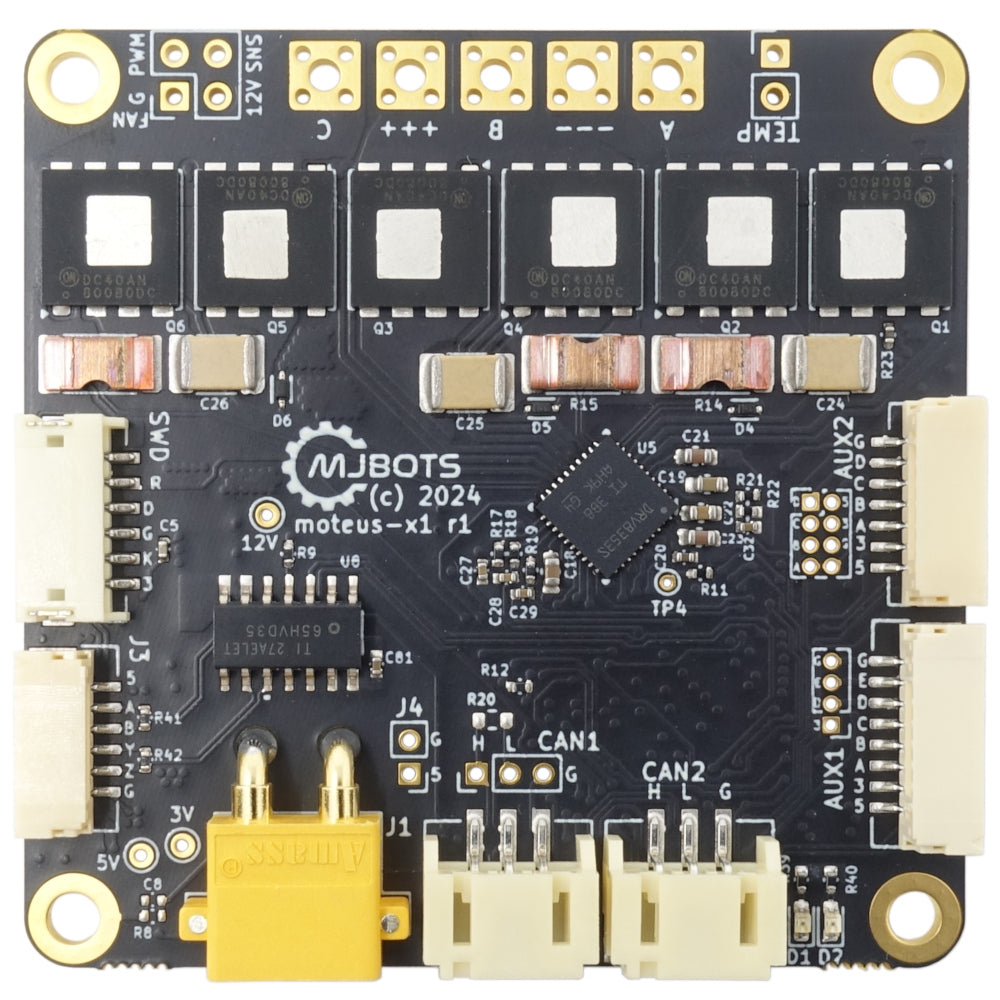

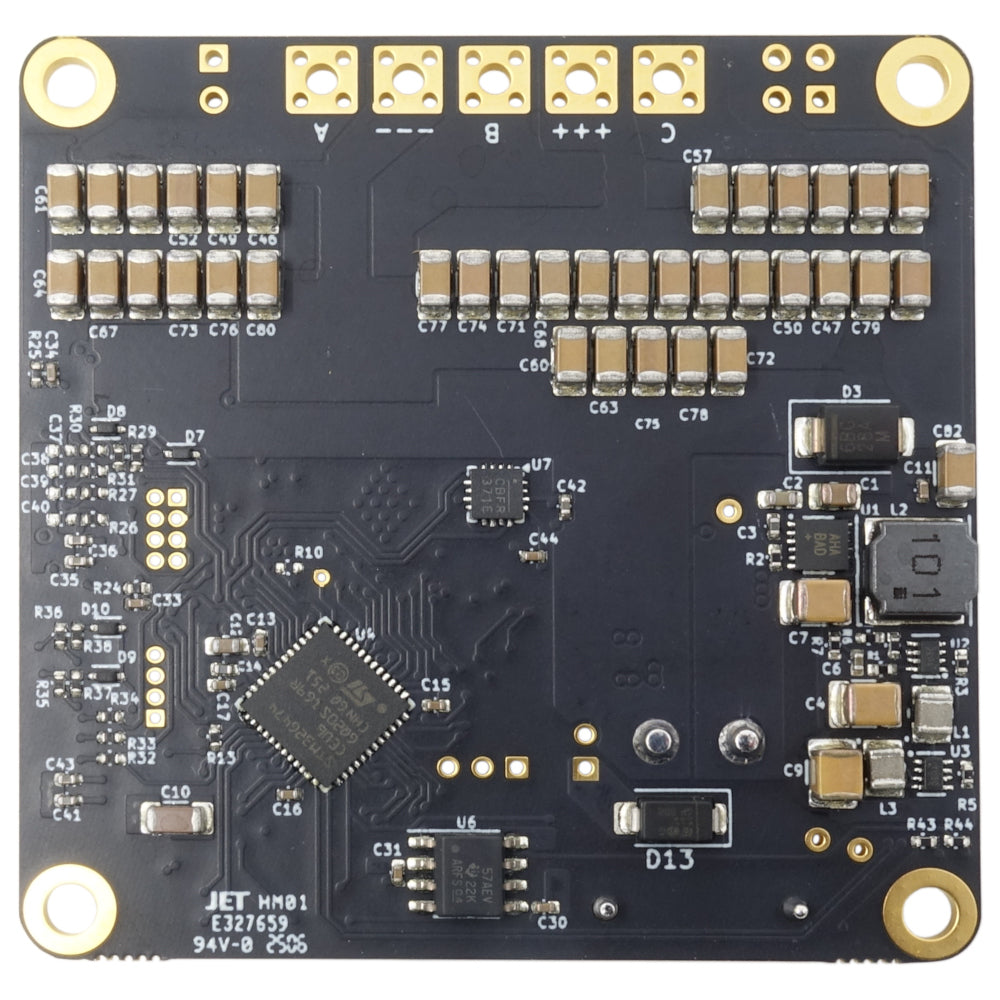

The moteus-x1 brushless controller turns a hobby brushless motor into a high performance servo actuator for low-cost systems. It integrates the necessary drive electronics, a high performance 32 bit microcontroller, an absolute magnetic encoder, and a high-speed data interface in a compact package.
Specifications:
- 3 phase brushless FOC based control
- Voltage Input: 10-54V (<=12S)
- Temperature: -40-85C
- Peak phase current: 120A
- Continuous phase current: 25A / 60A (w/o and w/ thermal management)
- Peak Electrical Power: 1.3kW @ 36V
- Mass: 23.7g
- Control rate: 15-30kHz
- PWM switching rate: 15-60kHz
- 170 MHz 32 bit STM32G4 microcroprocessor
- Max electrical frequency: 3kHz

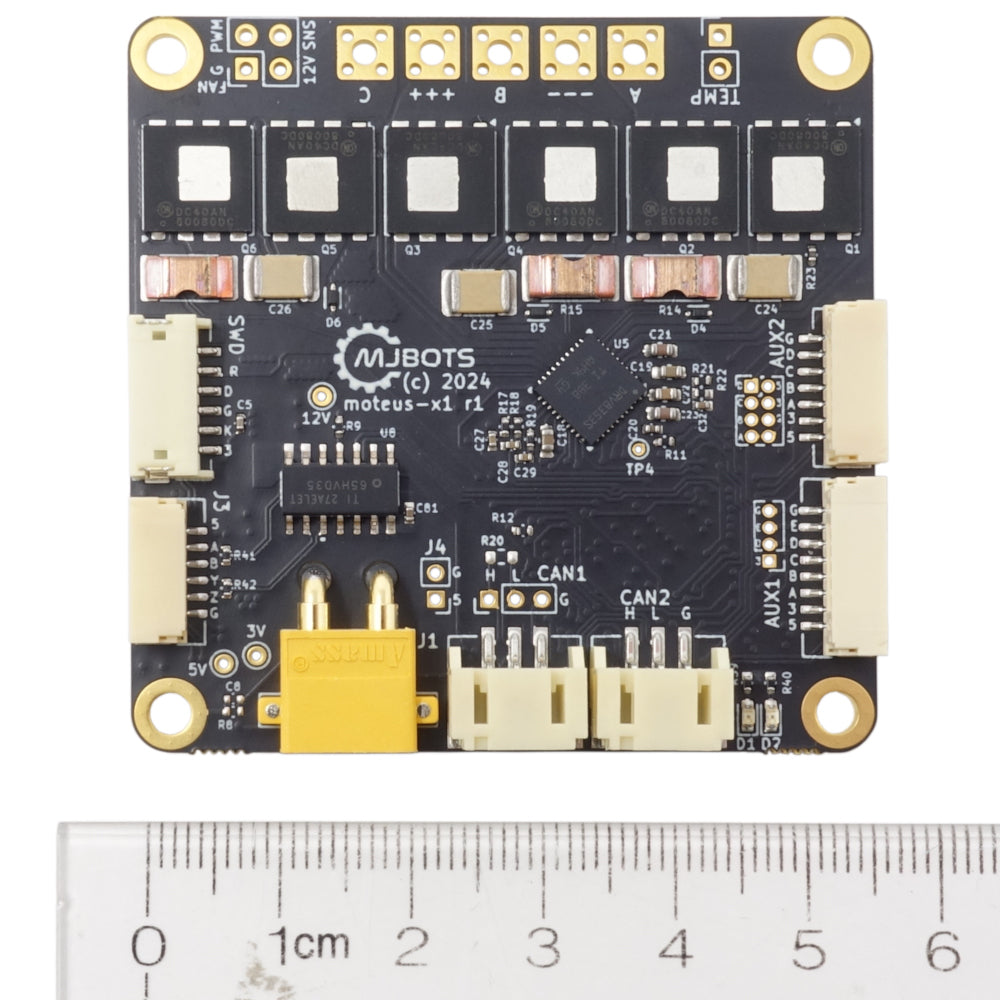

- Dimensions: 56x56x10mm - 2D CAD (pdf) / 3D Model (STEP)
- Board Mountable: Power, CAN, motor, 12V fan, thermistor, and AUX2
- Communications: 5Mbps CAN-FD
- Power Connector: XT30PW-M
- Data Connector: 2x JST PH-3
- Auxiliary connectors (JST GH7/8) with: SPI, UART, GPIO, ADC, Quadrature, Hall, and I2C support
- RS422 connector (JST GH6)
- 3.3V/150mA and 5V/200mA power available for external peripherals
- Open source firmware (Apache 2.0): https://github.com/mjbots/moteus
Each controller also has included 1 mating XT30 connector, 2 mating JST-PH3 housing with crimp terminals, and a 6mm diametric disc magnet.
Optional accessories:
- A developer kit is also available. It includes a mj5208 motor, mjcanfd-usb-1x, PH3 cable, stm32 programmer, and a 24V/5A power supply.
- Daisy chain CAN-FD wiring: JST PH3 cables / Termination resistors
- Auxiliary port connector housings are available: GH6 (for RS422), GH7 (for AUX2), GH8 (for AUX1) and pre-crimped wire terminals for all GH connector housings
- A heat spreader can be used to improve thermal performance
- A servo bracket can be used to mount the moteus-x1 to a motor
Documentation is available in github and youtube:
