mjbots
moteus-x1 heat spreader
moteus-x1 heat spreader
Regular price
$29.00 USD
Regular price
Sale price
$29.00 USD
Unit price
/
per
Shipping calculated at checkout.
| Quantity | Unit Price |
|---|---|
| 50 - 99 | $24.00 |
| 100 - 499 | $21.00 |
| 500 - | $19.00 |
Couldn't load pickup availability

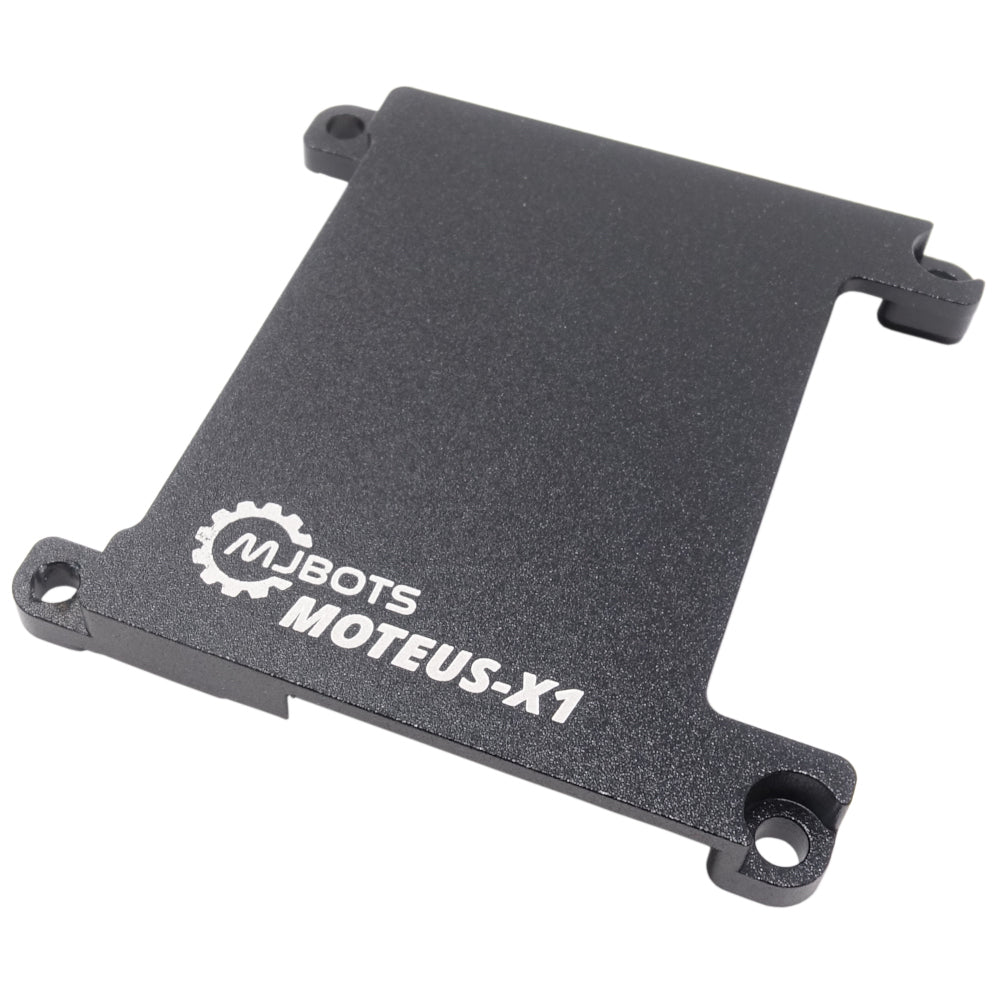

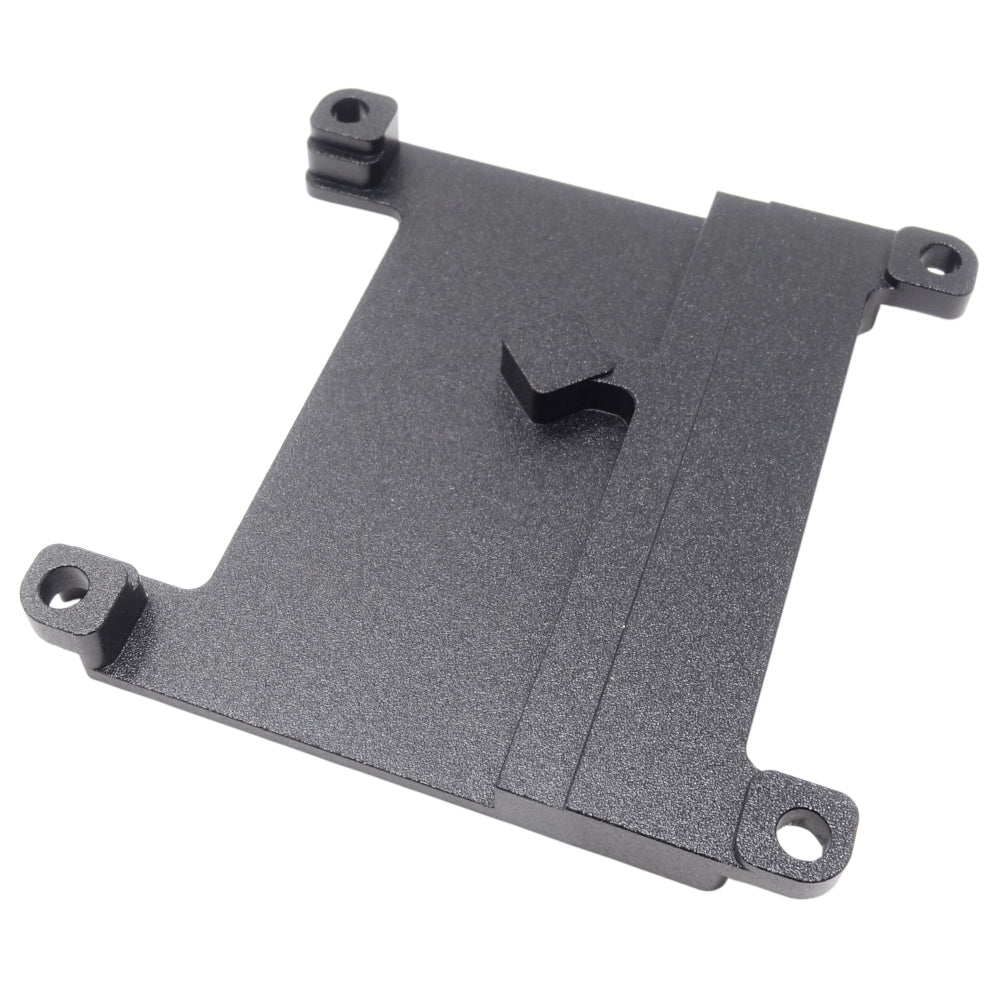

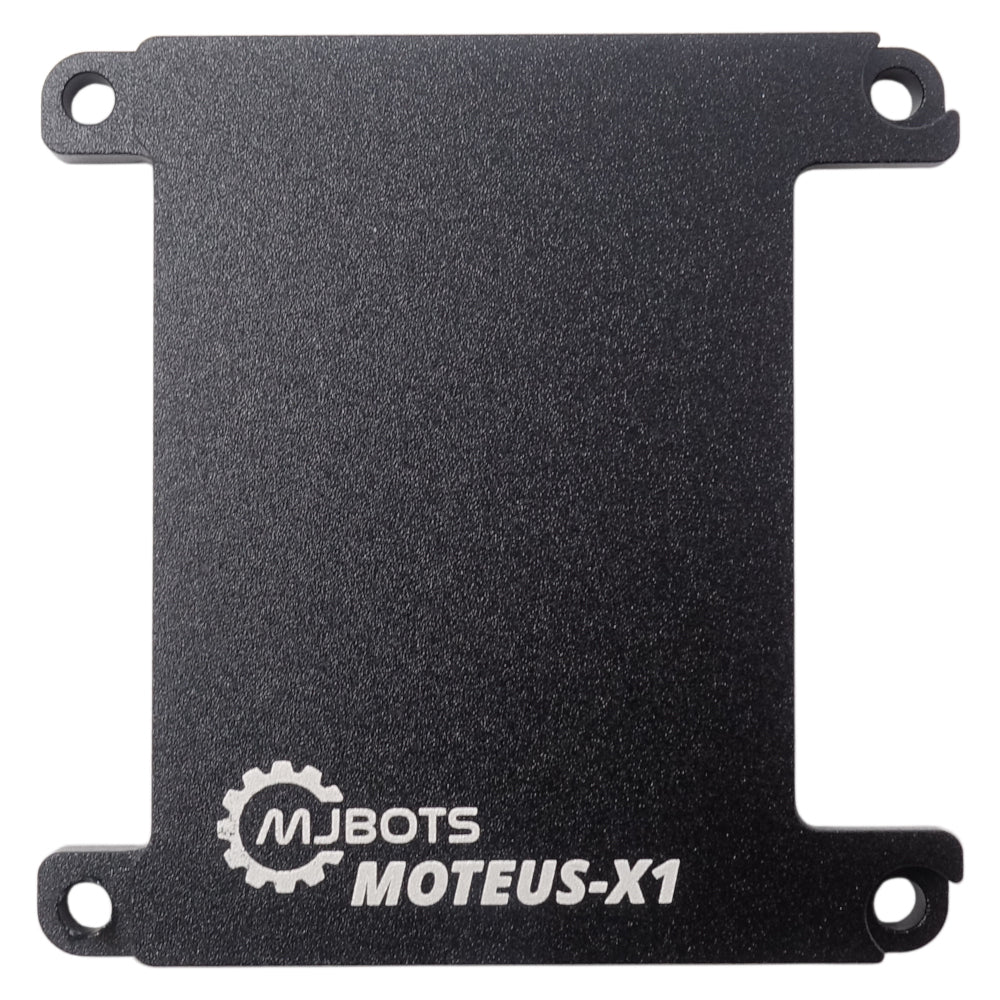

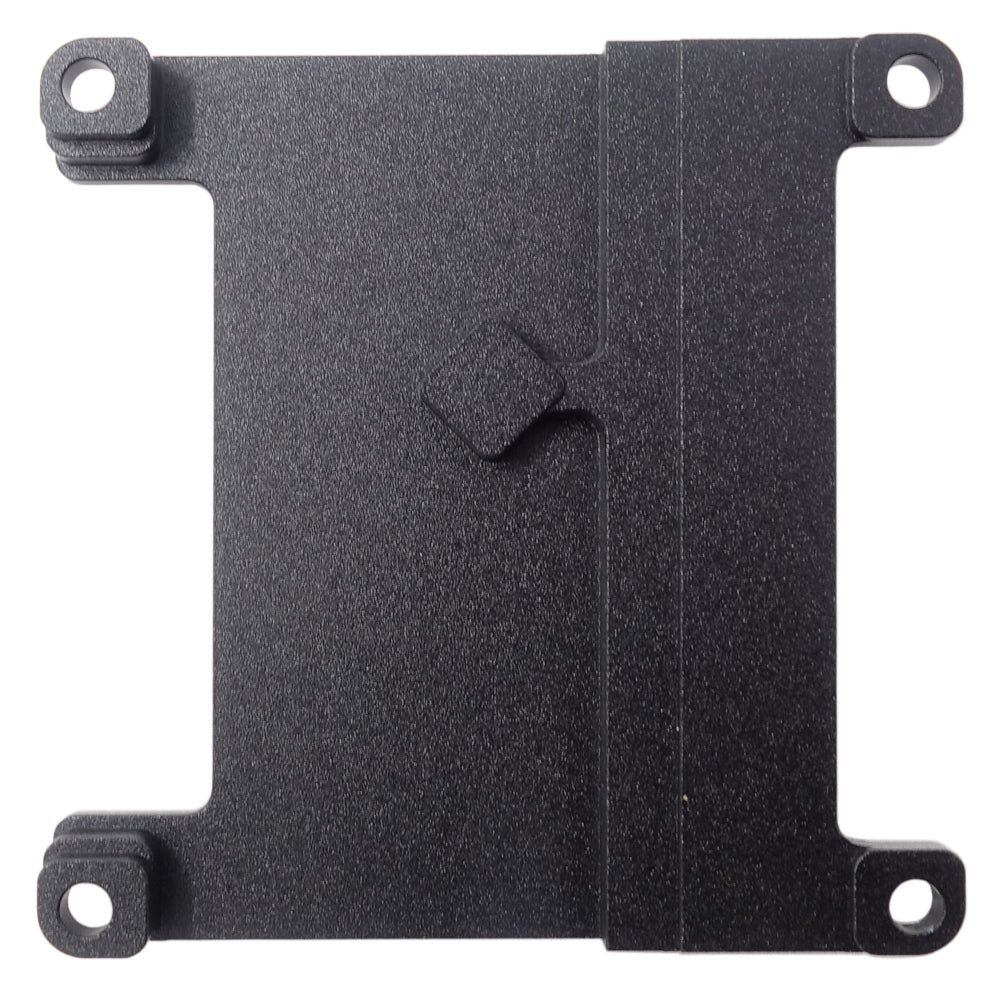

This precision machined and stylish aluminum part mounts to the front of the moteus-x1 controller, efficiently removing heat from the MOSFETs and the DRV8353 gate driver. This enables higher performance by reducing thermal throttling, especially at high input voltage levels.
It can be used as is, or with an additional heatsink adhered to the flat mounting surface.
0.2mm thick thermal pads are included to attach to the thermal surfaces. Most 0.2mm thick thermal pad or tape can be used.

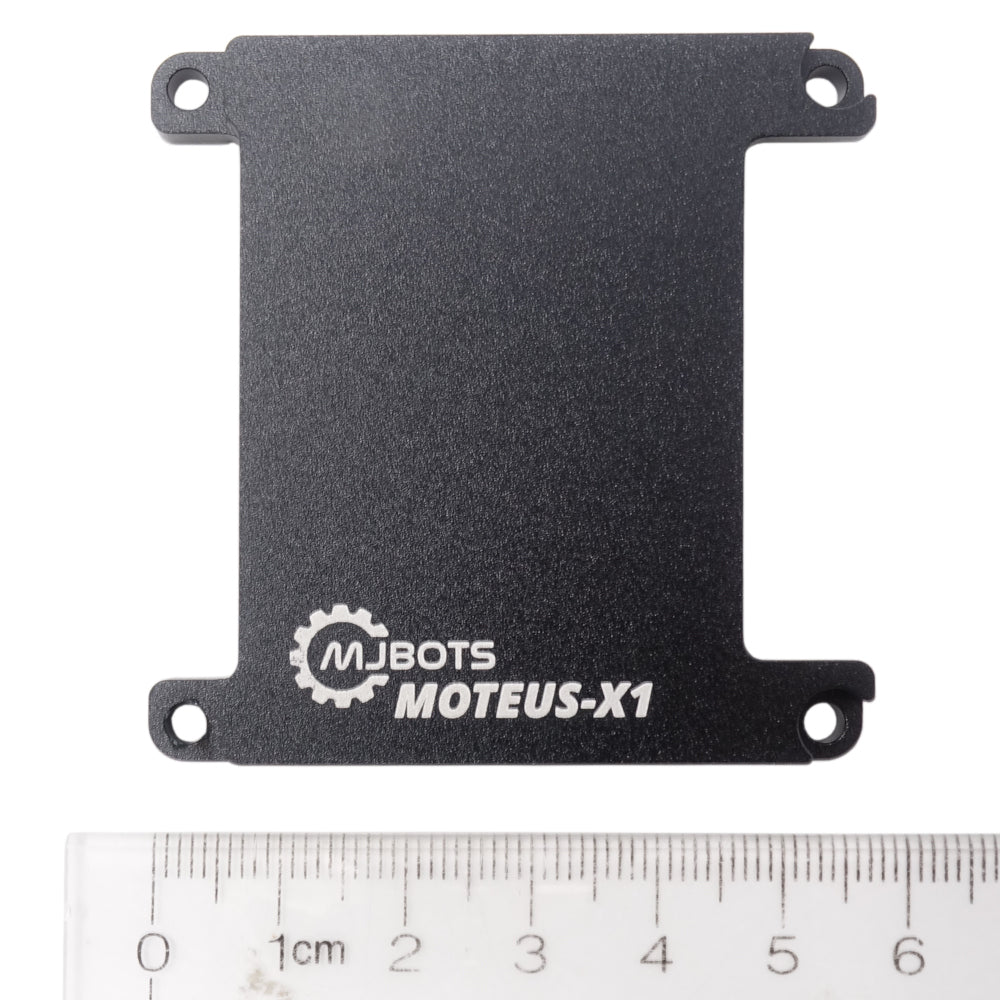

- Dimensions: 56mm x 56mm x 6.5mm
- Mass: 20.1g
- CAD: 3D Model (STEP file)
Note: No moteus controller or devkit is included, this is just the heat spreader and thermal pad.
