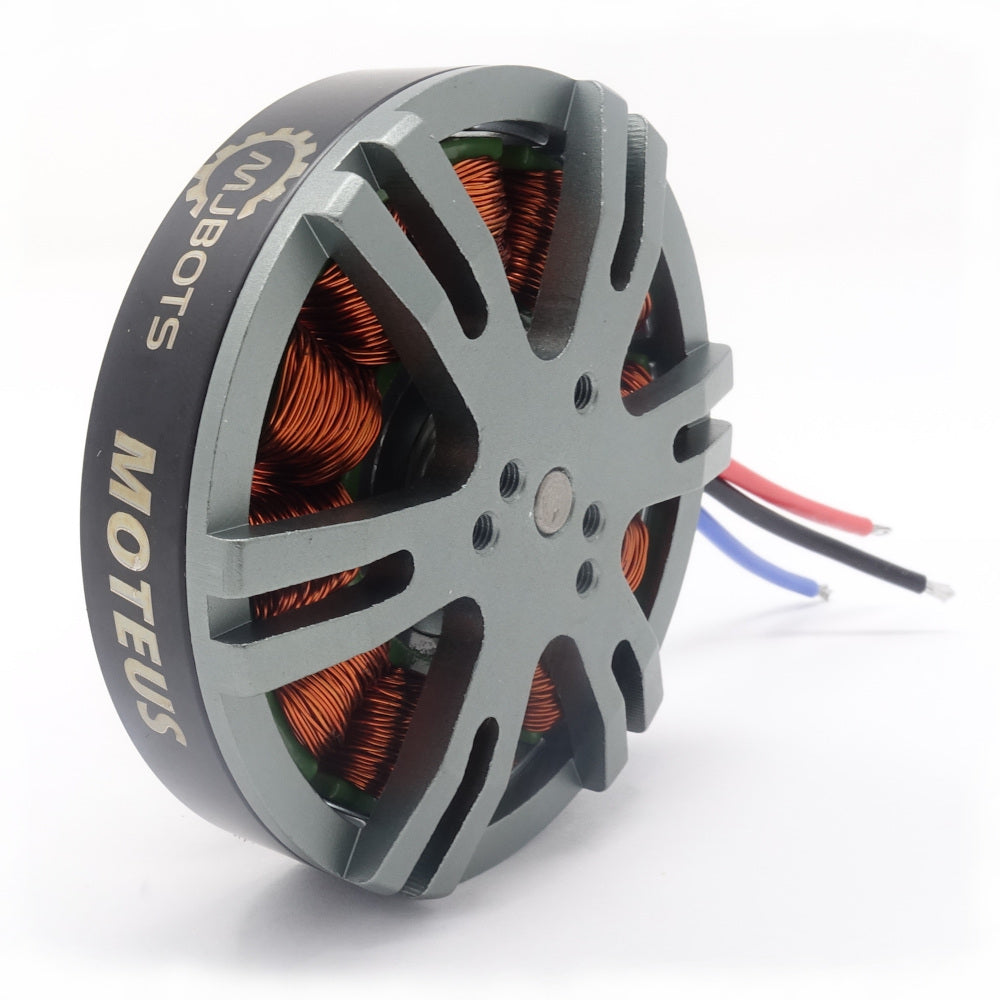

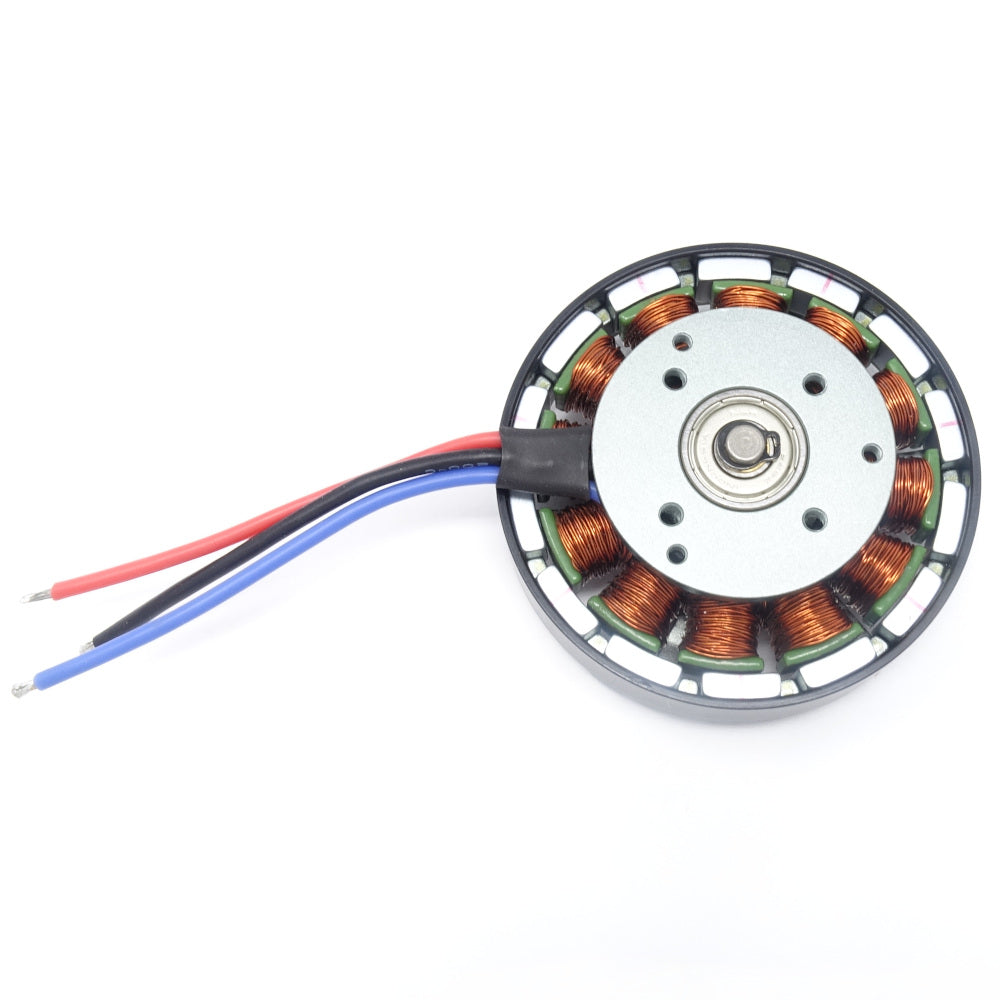

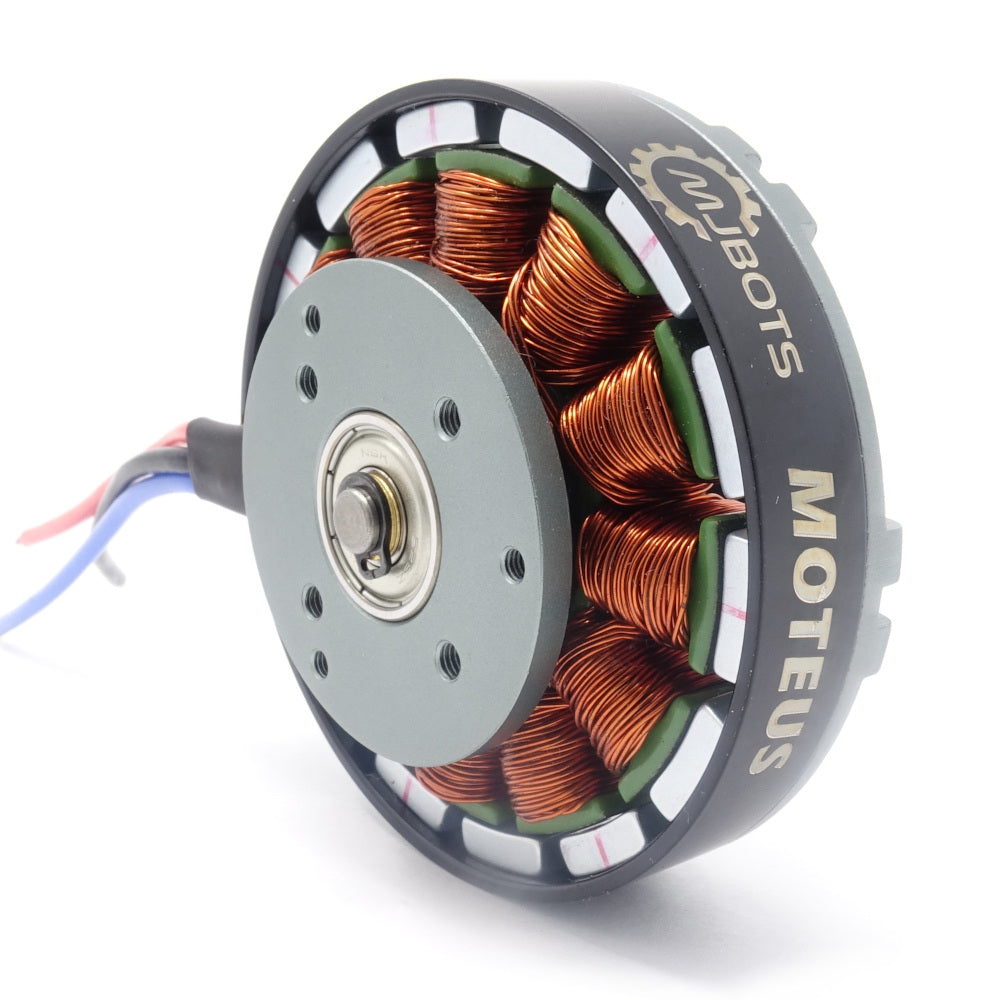

A "mjbots moteus" branded high performance 5208 brushless motor:
- Peak torque: 1.7 Nm
- Mass (with wires): 193 g
- Peak power: 600W
- Kv: 330
- Maximum RPM: 7500
- Outer diameter: 63mm
- Length: 25mm
- CAD: 2D drawing - 3D model *
- EC declaration of conformity
The leads are ~8cm long pigtails, perfect for wiring to a moteus controller. This is the motor used in the moteus devkit.
*3D model courtesy of Rüdiger Koch-Kukies
