fdcanusb

Regular price
$109.00
Sale price
$109.00
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

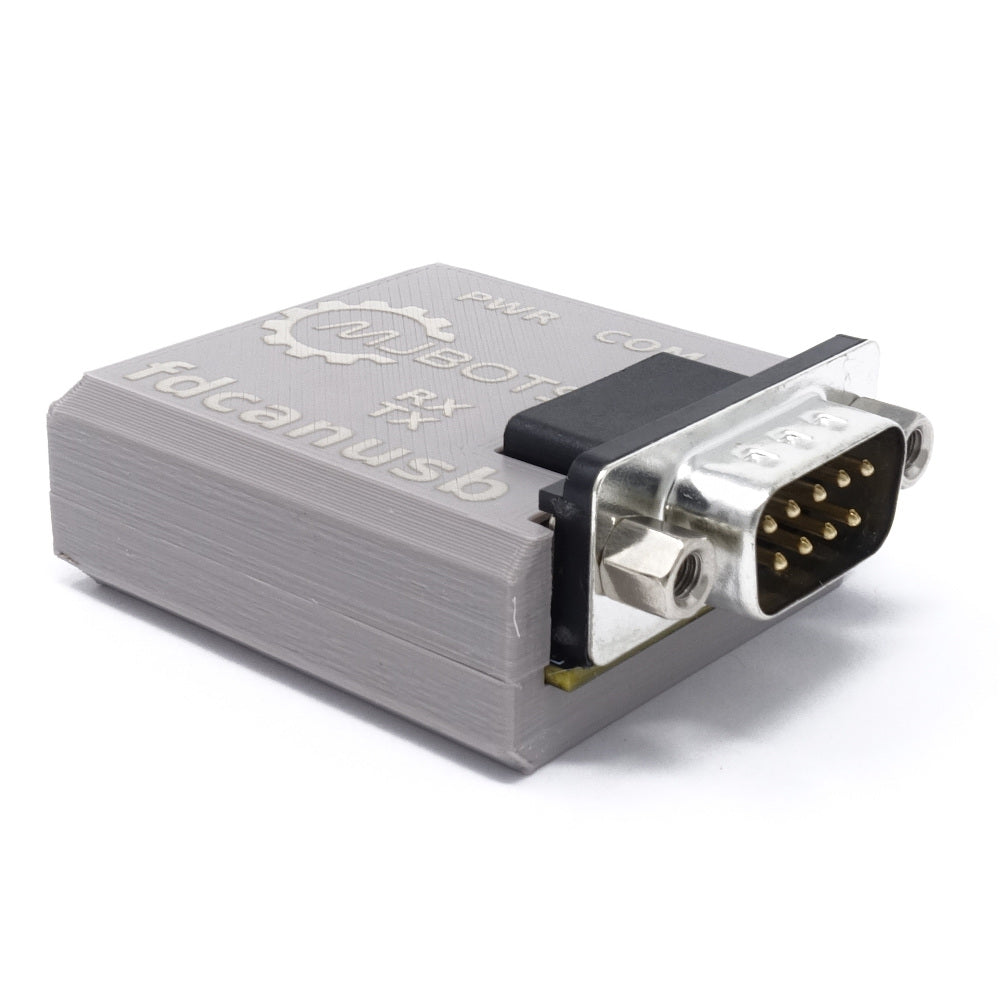

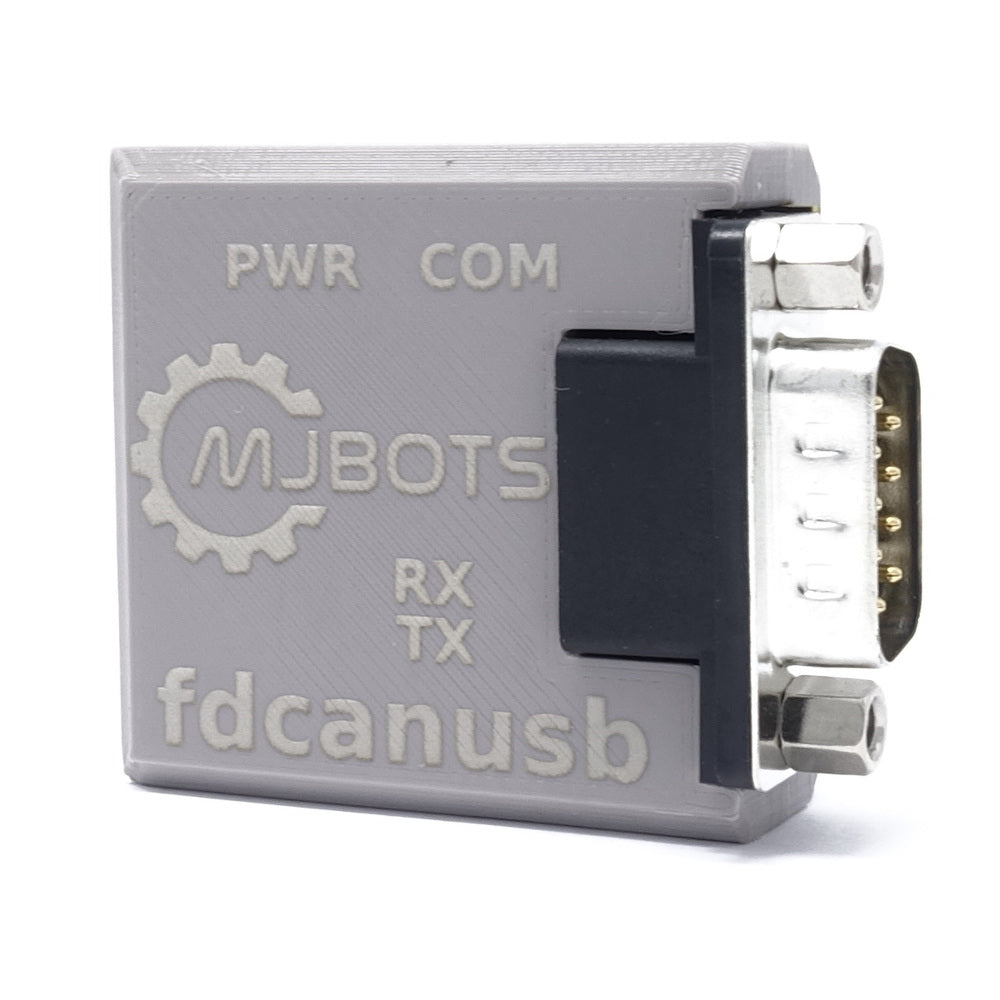

The fdcanusb device provides a USB 2.0 interface to a CAN-FD bus.  CAN-FD is the newest CAN standard and supports data frames up to 64 bytes and data rates up to 12Mbit.

Features:

  • CAN-FD (ISO 11898-1:2015)
  • Presents as a USB CDC device (a virtual serial port), with a simple line based protocol for compatibility with all operating systems
  • Software selectable termination
  • STM32G4 based open source firmware, programming port included
  • 3D printed PETG case
  • This provides galvanic isolation of +- 12V on the CAN lines, the ground connection is not isolated from USB
Connectors:
  • PC: USB micro
  • CAN: DB-9
