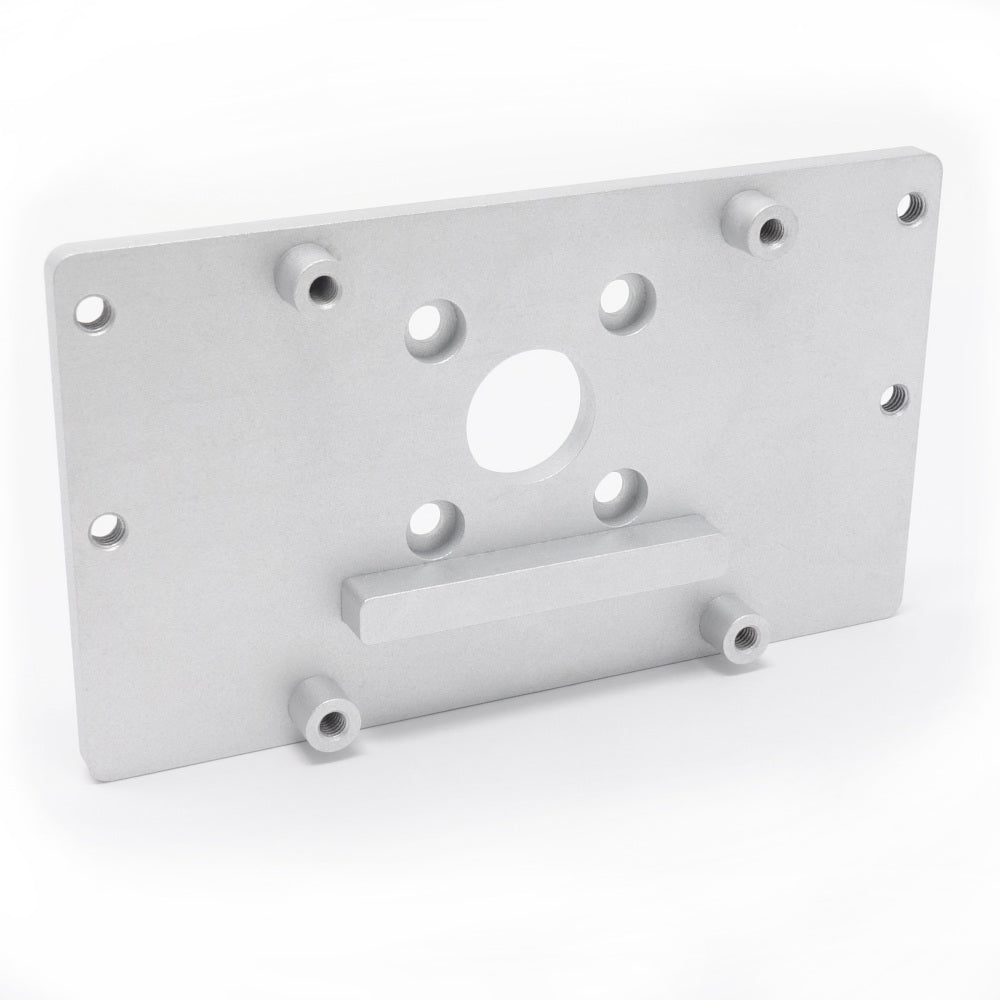

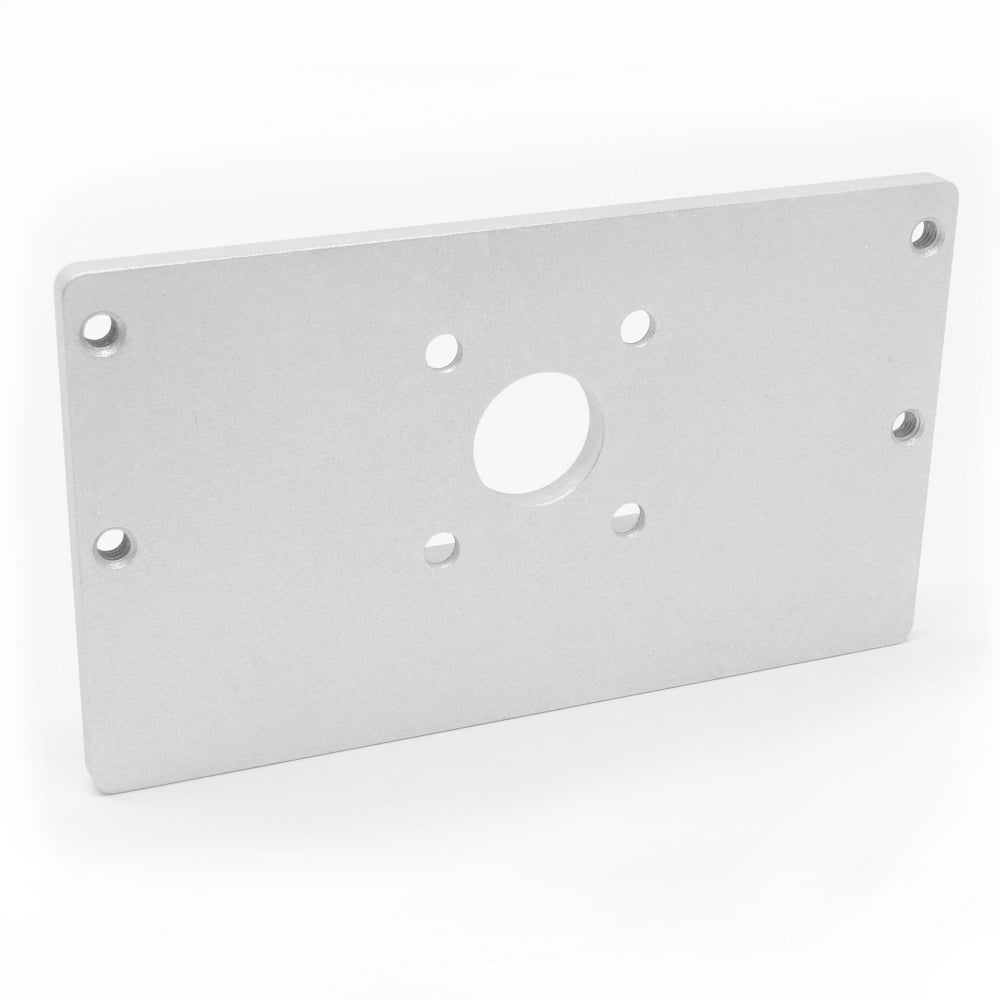

This machined aluminum bracket can be used to mount the moteus r4 controller to a motor with a 4x 25mm diameter M3 bolt pattern. It has threaded M3 holes on the outside perimeter to mount the bracket into a larger assembly.
NOTE: This is *NOT* compatible with the moteus-n1.
This bracket is used in the moteus r4 developer kit.

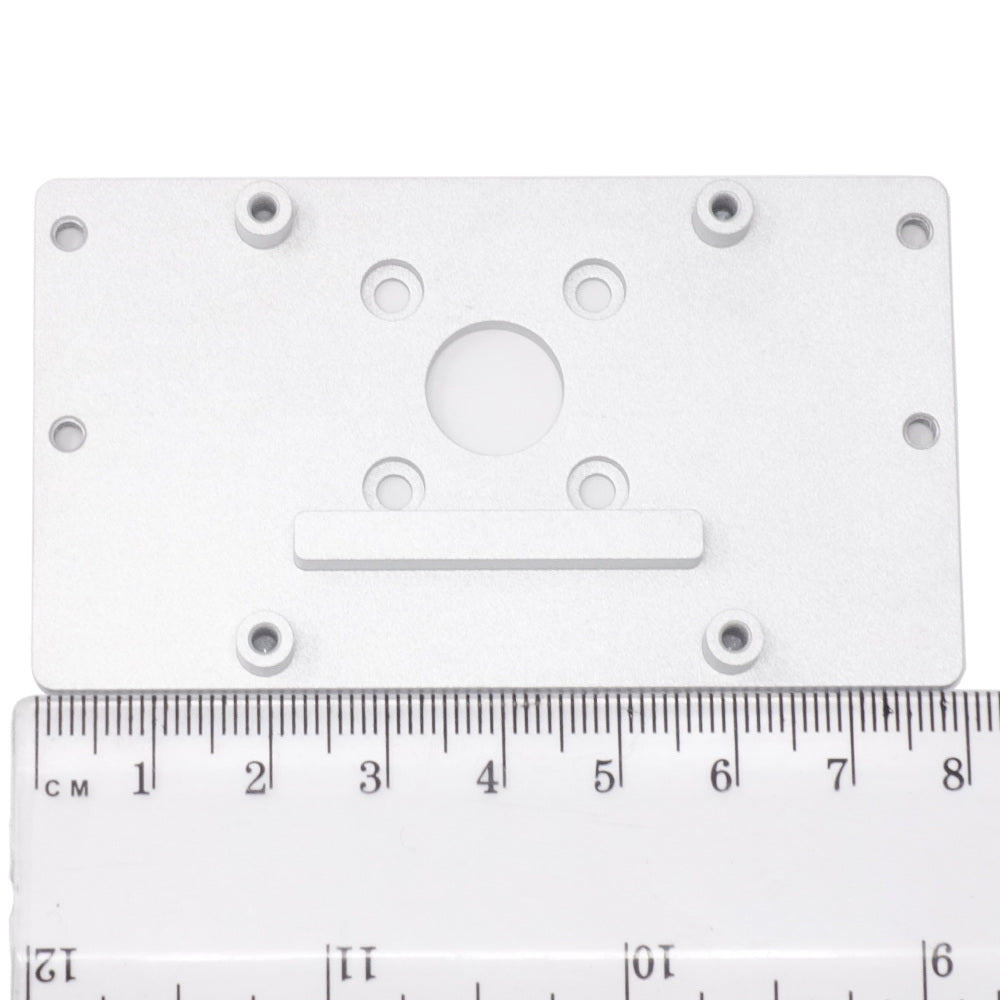

- Outside dimensions: 80x45.5mm
- Mass: 30.6g
- 2D mechanical drawing: CAD
