moteus cooling fan

moteus cooling fan

Regular price $29.00 USD
Regular price Sale price $29.00 USD
Sale Sold out
Shipping calculated at checkout.
Voltage and Connector
Mounting Kit

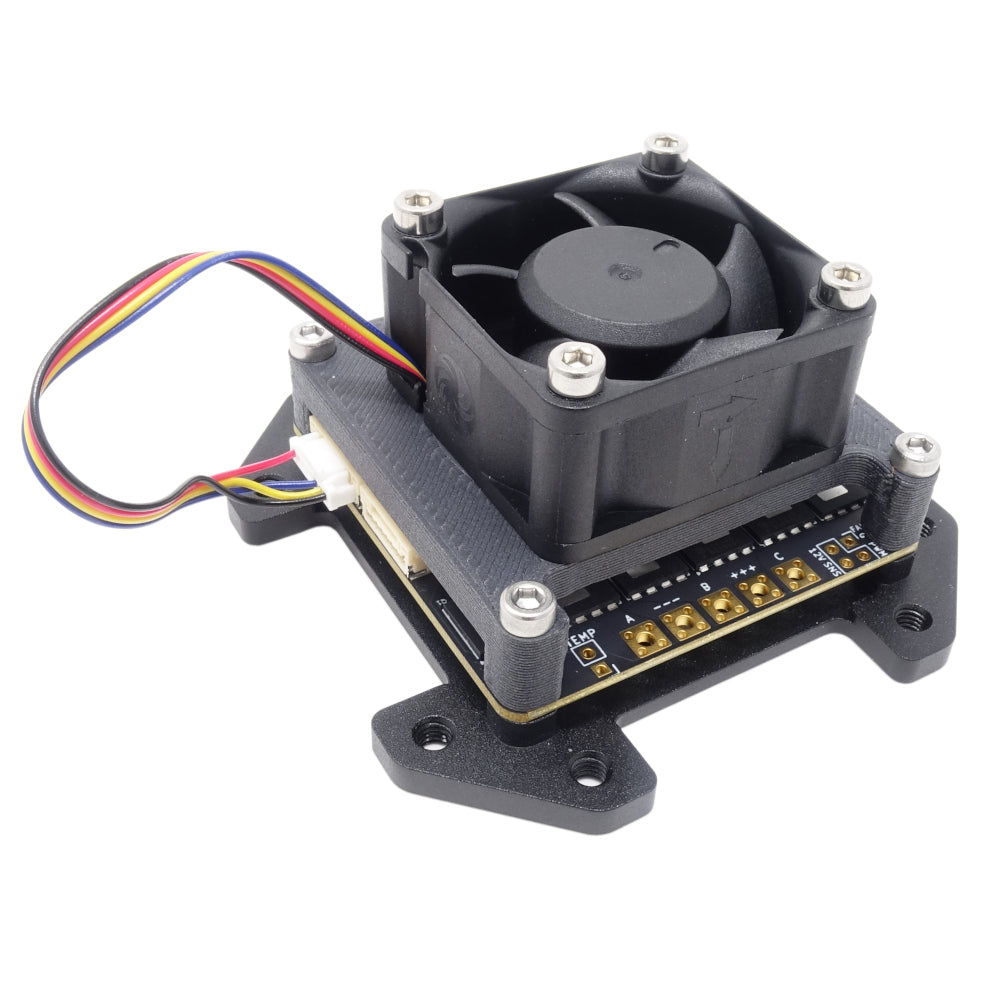

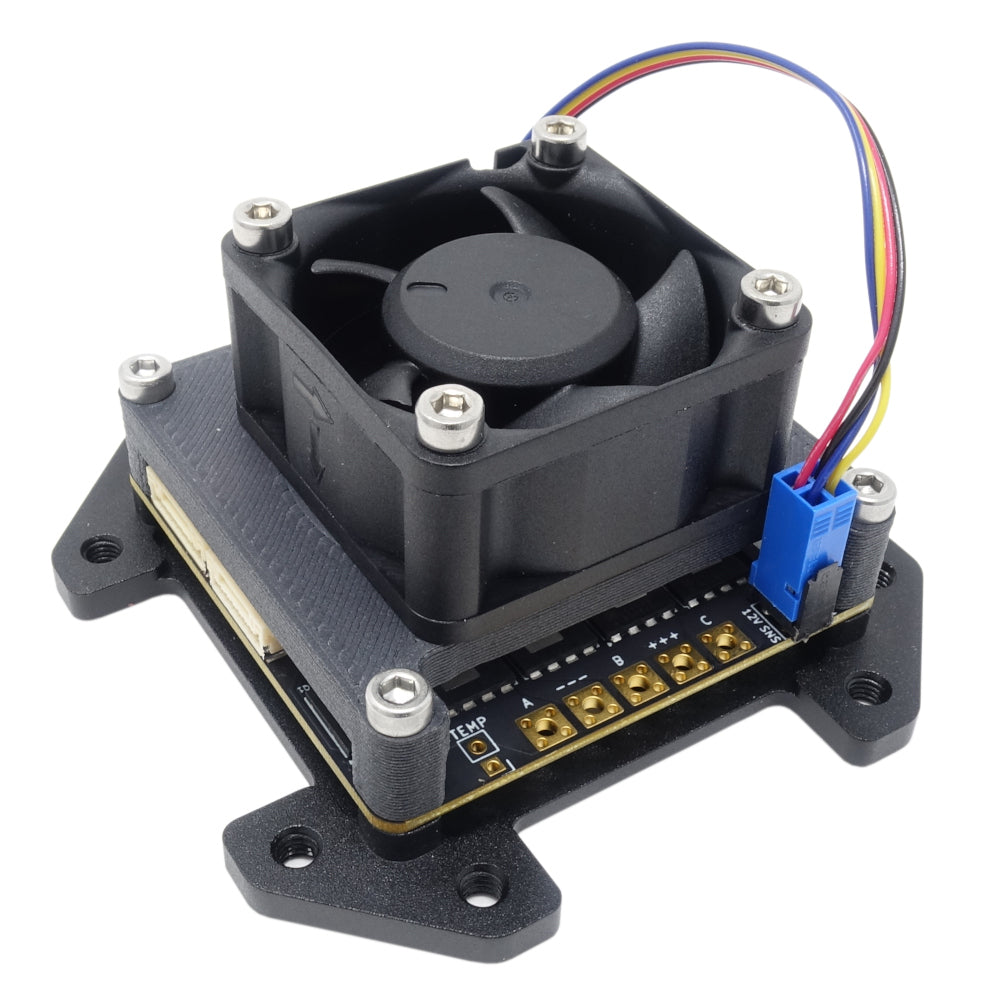

This axial blower fan comes with connectors to attach to aux1, aux2, the r4 ABS connector, or the 12V FAN connector on moteus-x1.  It is PWM controlled with RPM sense (sense not supported by moteus firmware yet), this fan can significantly increase the phase current performance of any moteus controller.  Optionally includes a mounting kit with PC Blend CF 100C rated fan bracket and mounting bolts.

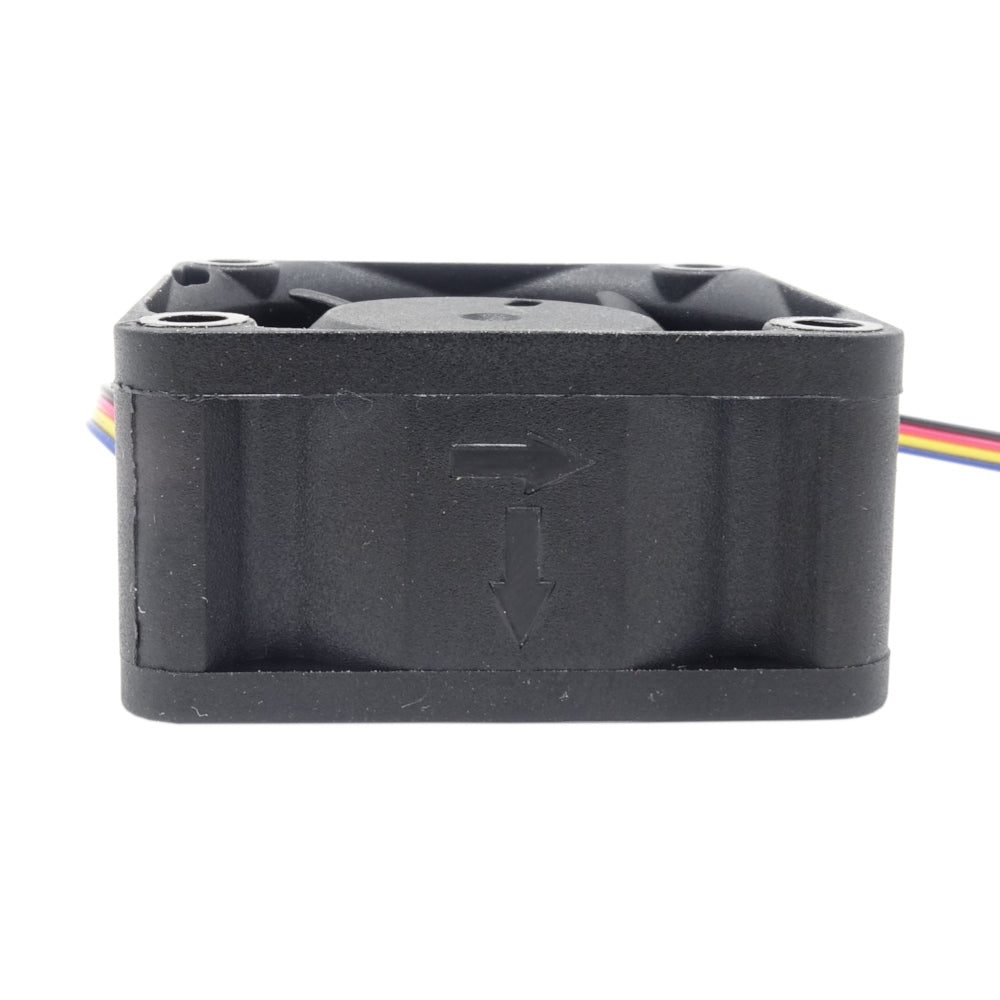

  • Size: 40mm x 40mm x 20mm
  • Mass: 24g, (~44g with bracket and bolts)
  • Max airflow:

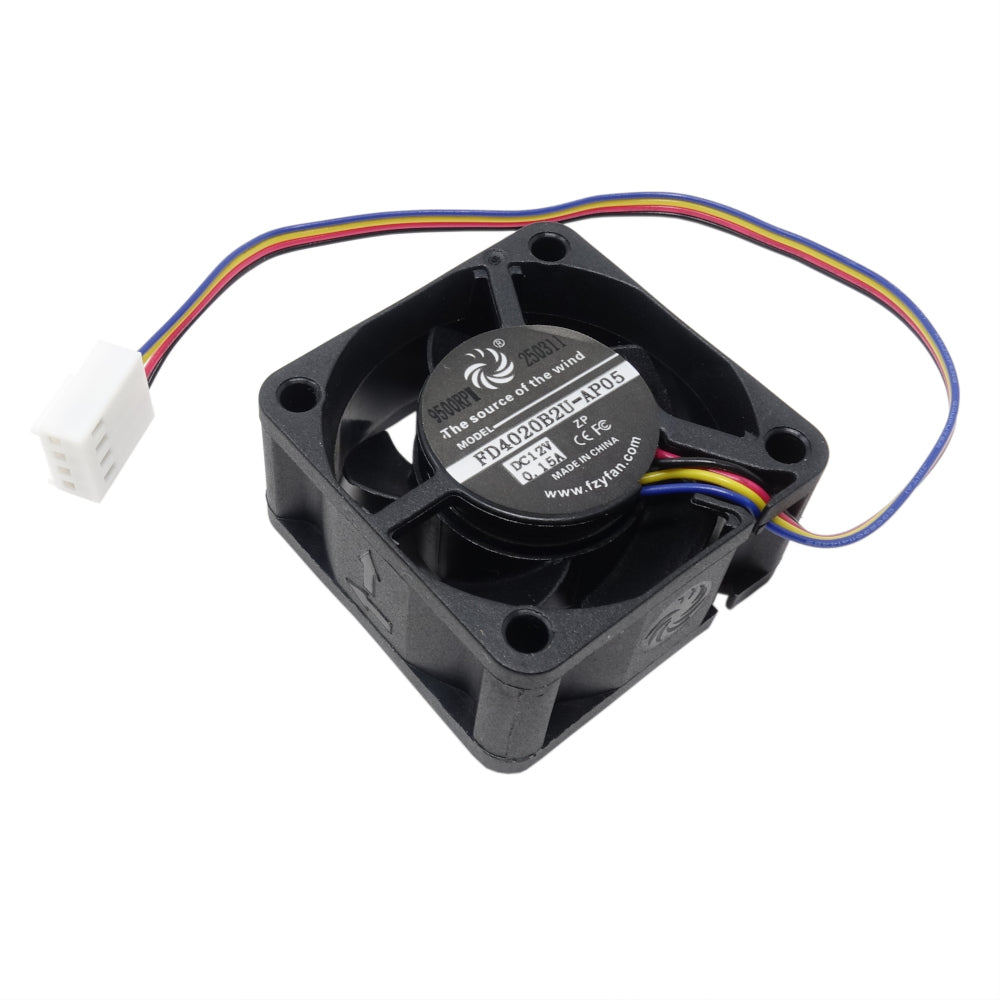

    • 12V - 11.2CFM

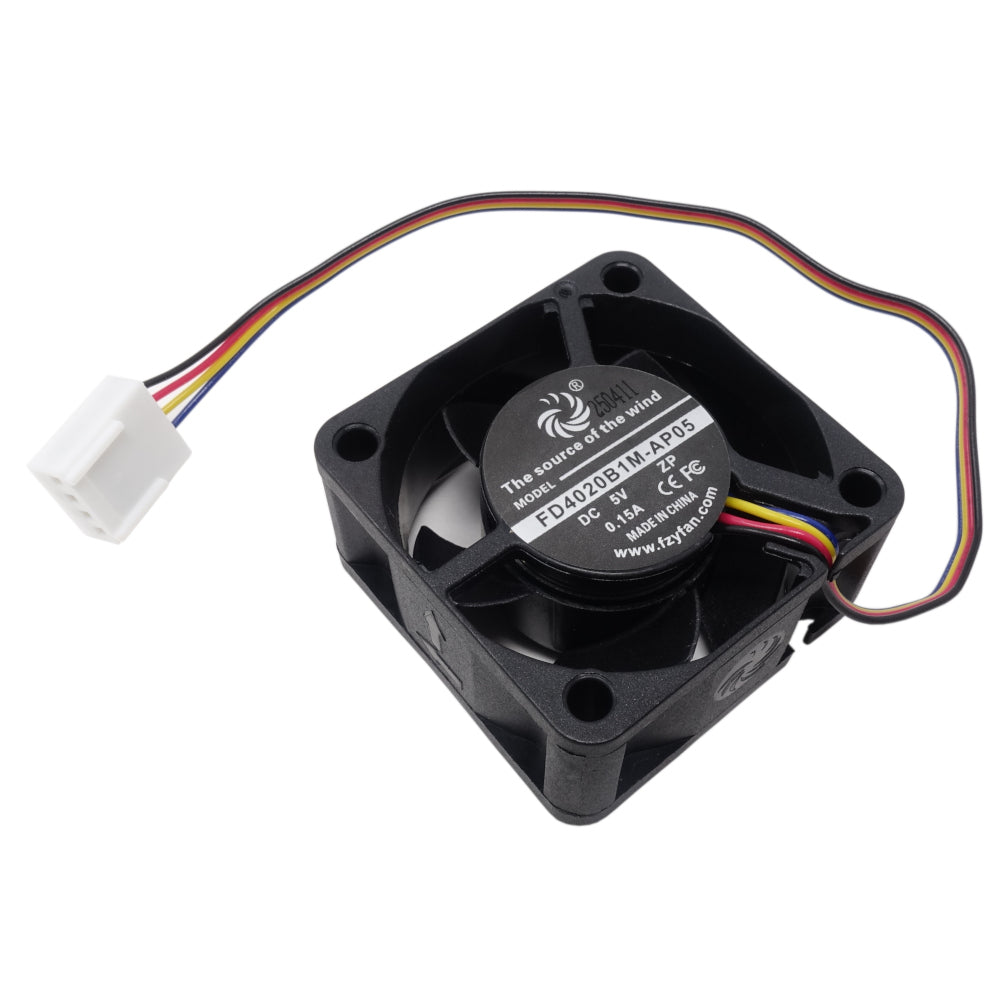

    • 5V - 7.5 CFM
    • 5V (operated at 3V w/ moteus-r4) - 5.1CFM

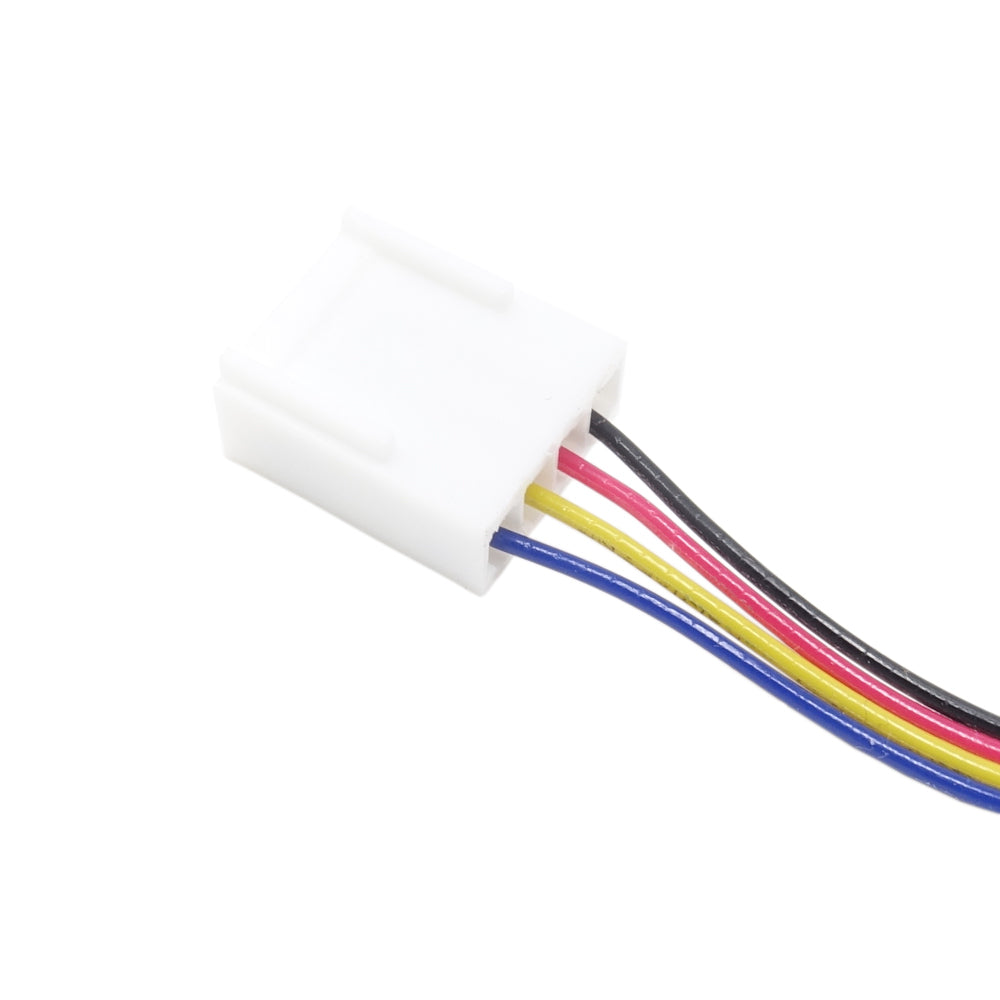

  • Connector / cable length:
    • 0.1" - 15cm

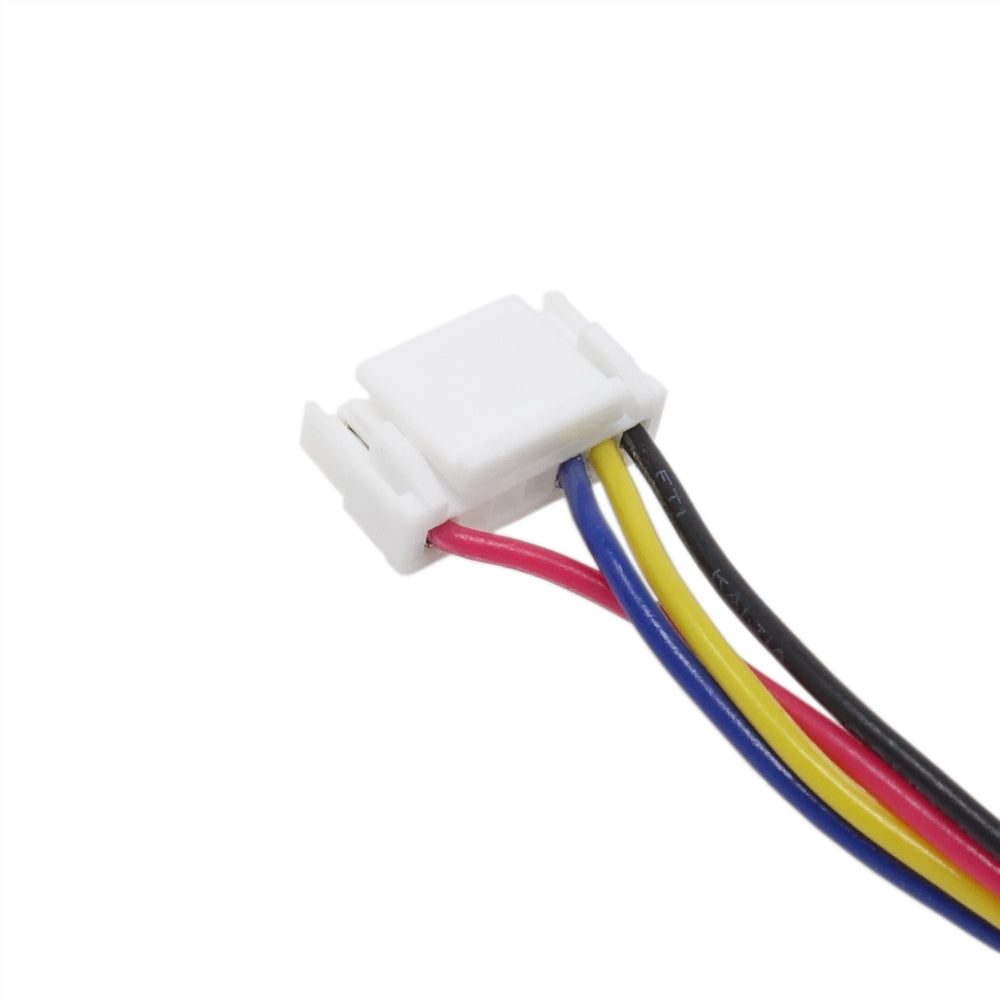

    • GH7/aux2 - 10cm

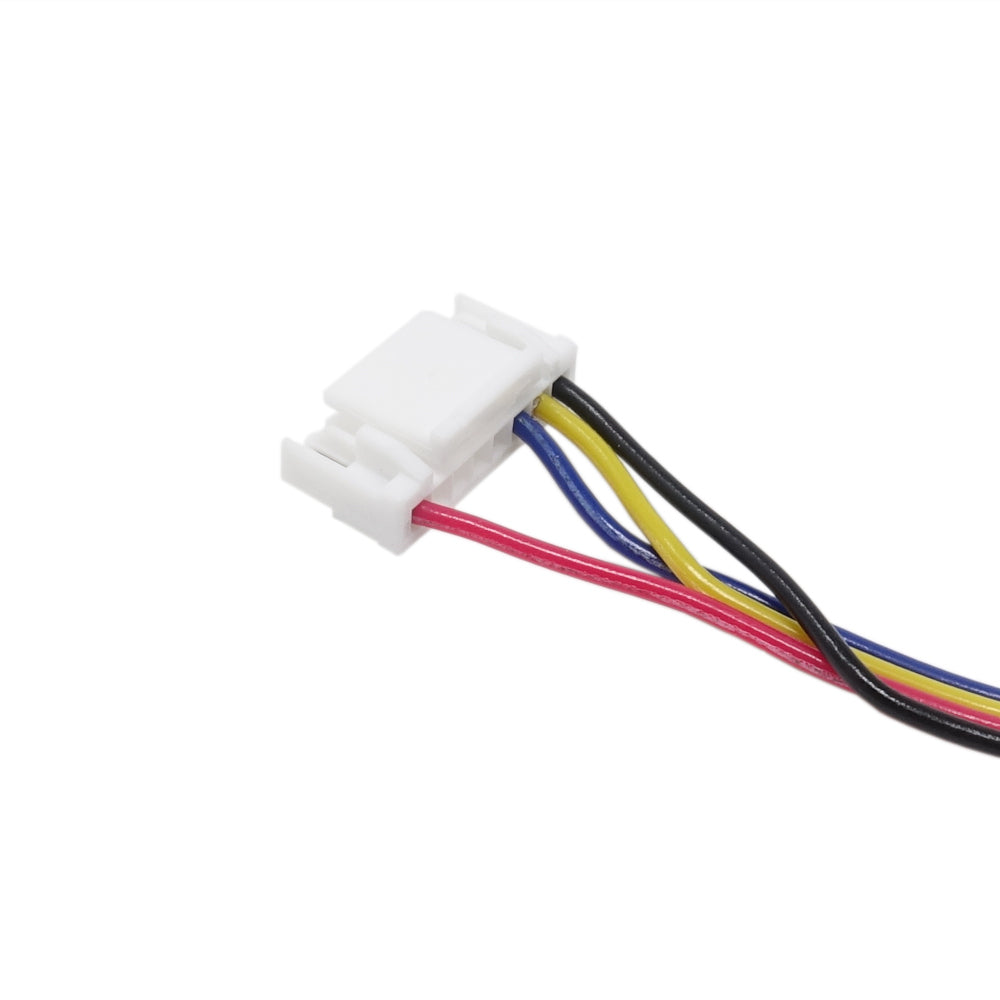

    • GH8/aux1 - 10cm

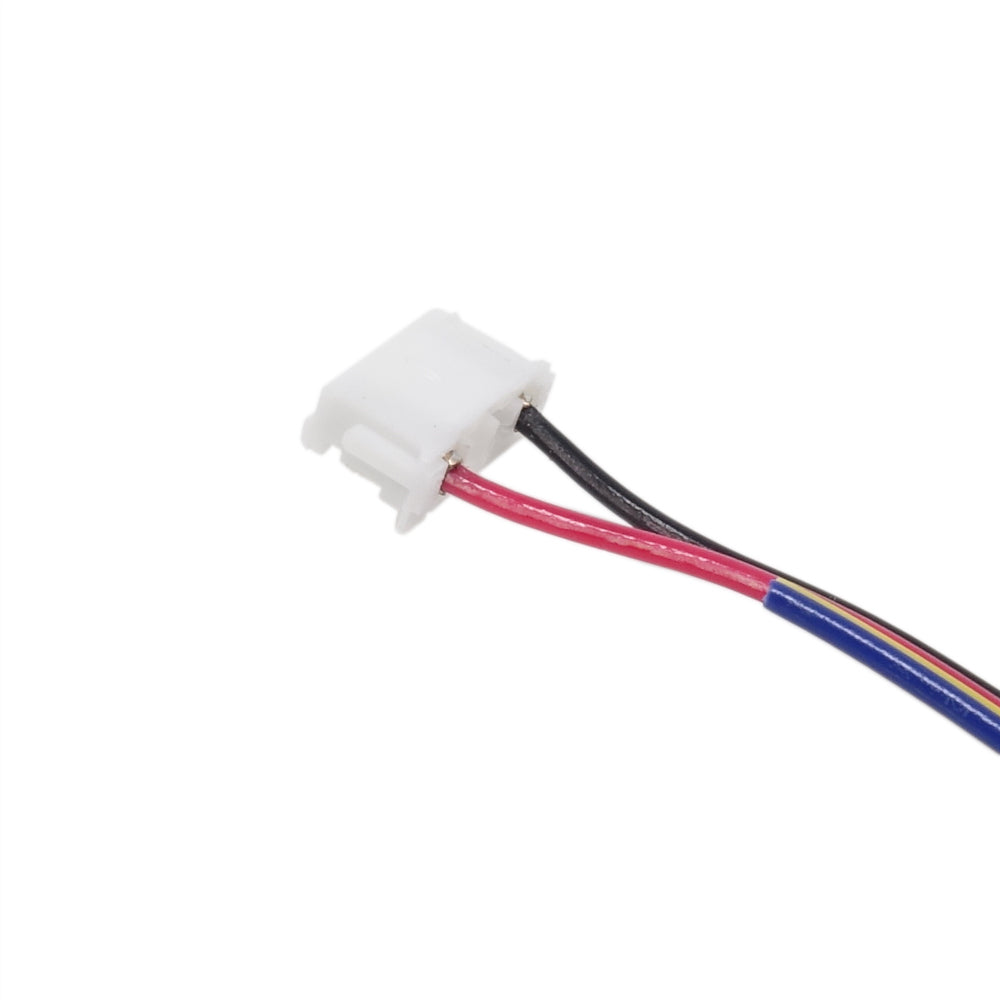

    • ZH4/abs - 10cm

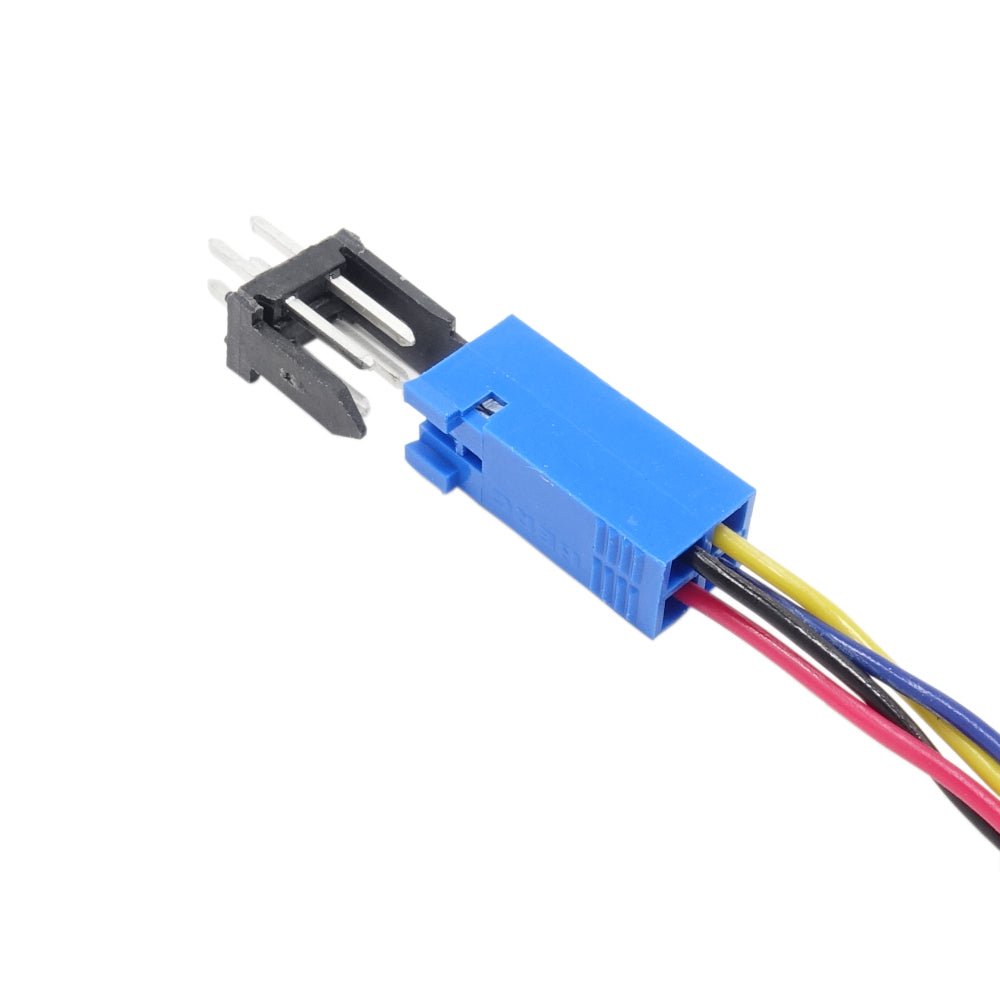

    • x1/fan* - 10cm
  • Mounting: None, moteus-r4, moteus-n1, moteus-x1
  • 3D model: fan, r4 bracket, n1 bracket, x1 bracket
  • Control: Logic level PWM input, RPM sense output
  • mpat analysis of thermal performance

When using provided connectors for aux2 or x1/fan, the PWM control is available on the moteus aux2 C pin, and RPM sense is available on the moteus aux2 D pin.  For aux1 harnesses, PWM control is available on aux1 D and RPM sense is available on aux1 E.

Mounting brackets include the following hardware:

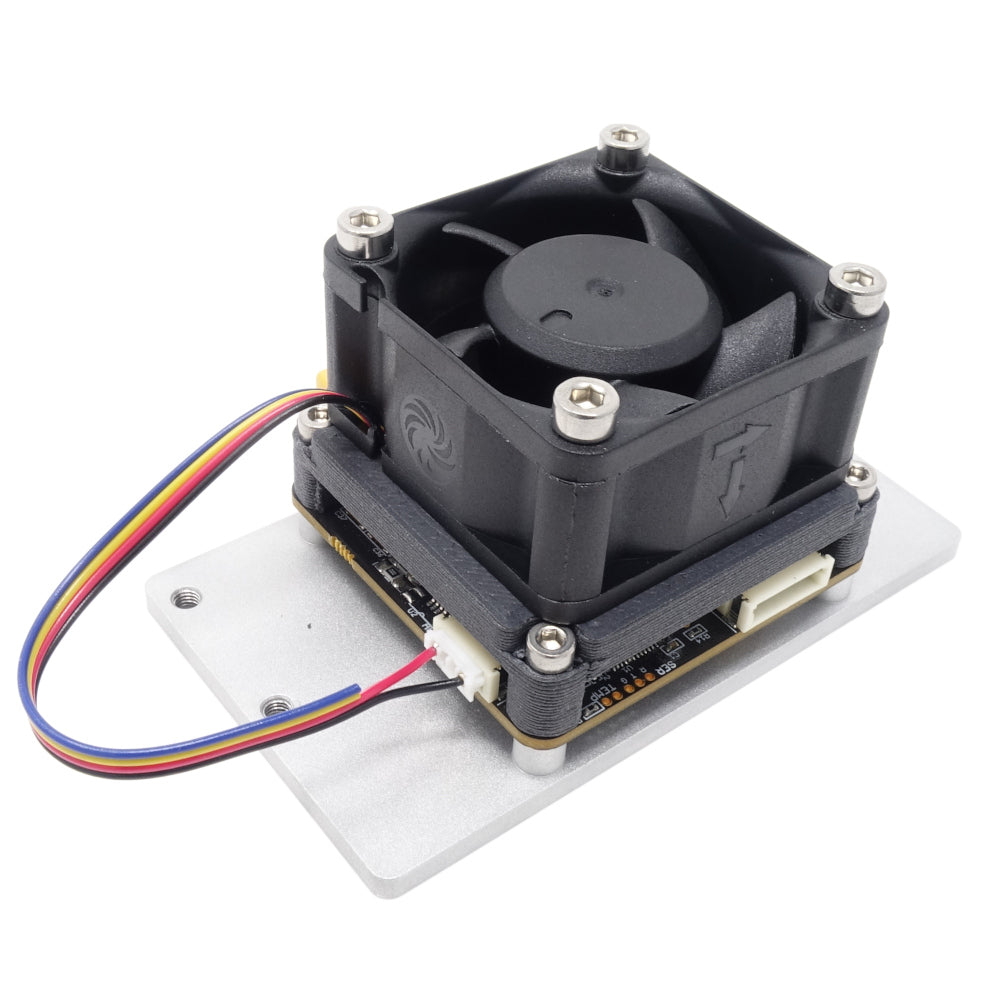

  • moteus-r4: 4x M2.5x14, 4x M3x25

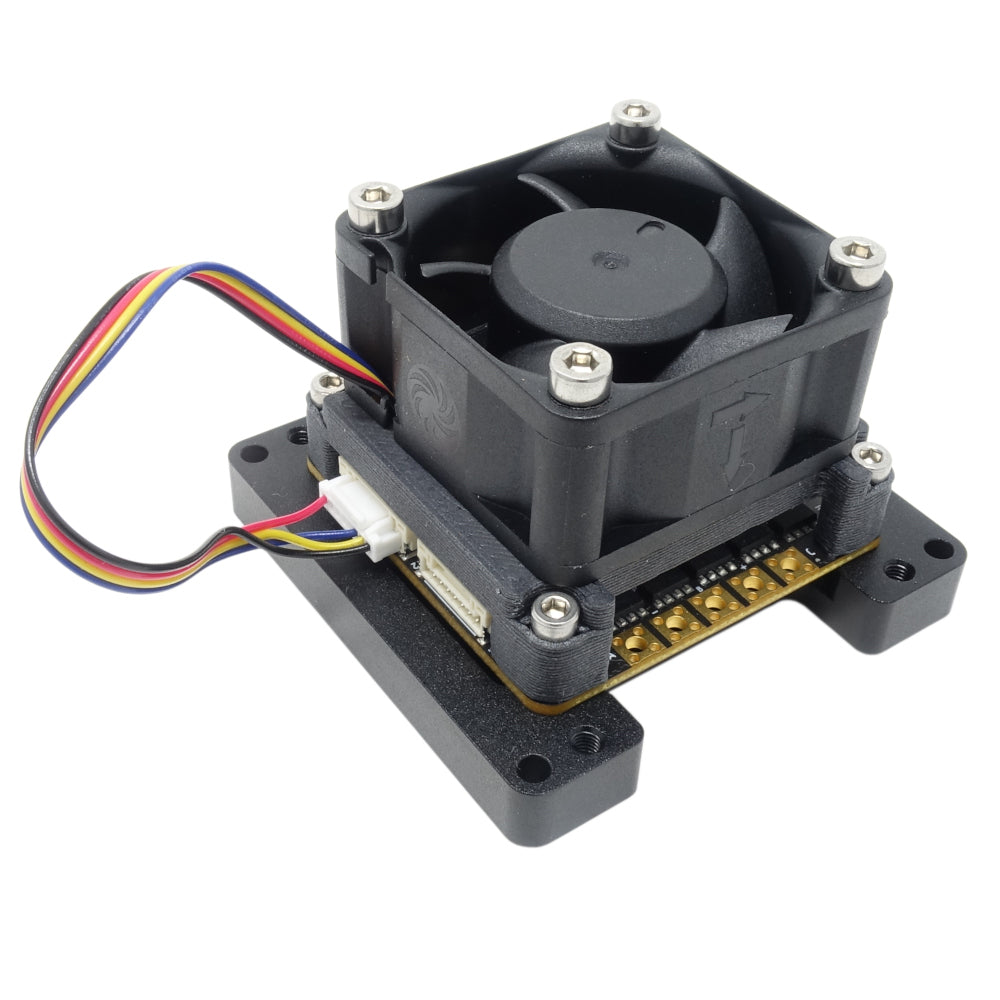

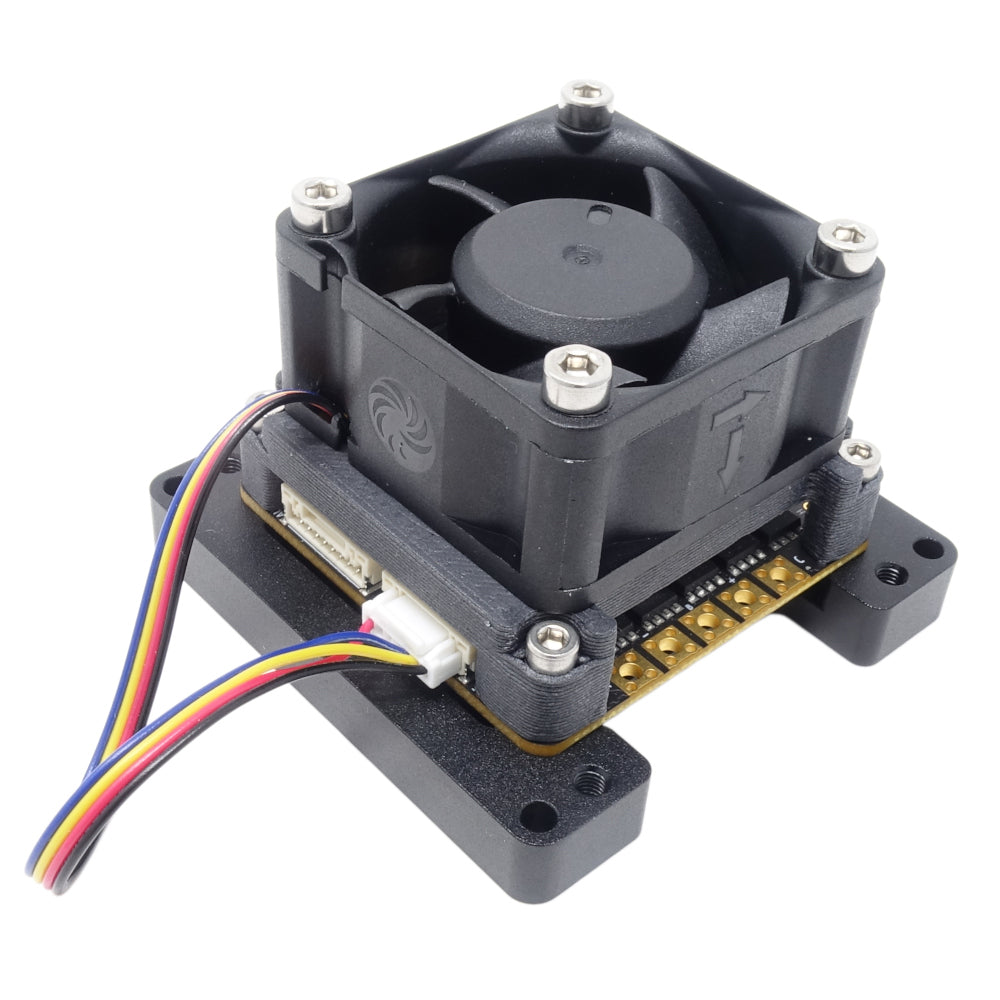

  • moteus-n1: 4x M2.5x14, 4x M3x25

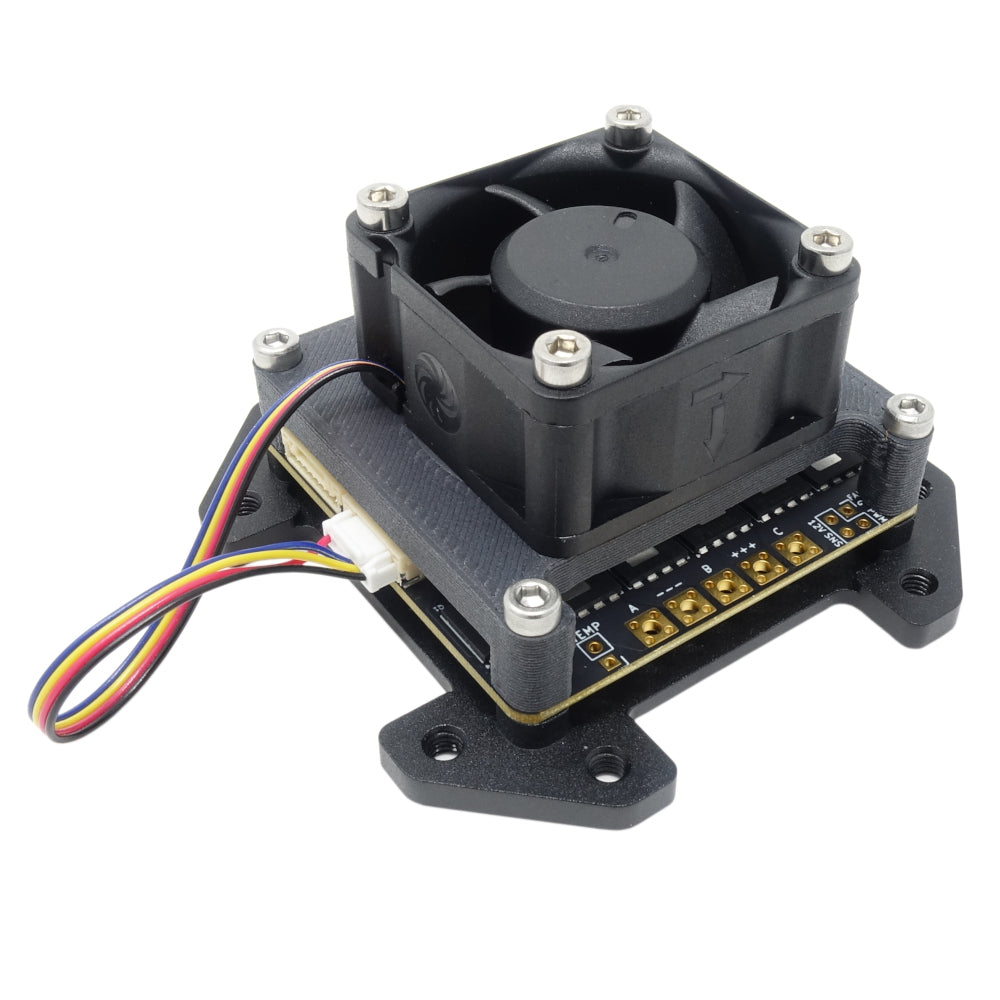

  • moteus-x1: 4x M3x16, 4x M3x25

No moteus controllers or servo brackets are included, they are depicted in photos just to show a complete assembly.

* The moteus-x1 FAN connector includes a pin header which must be soldered to the board.
