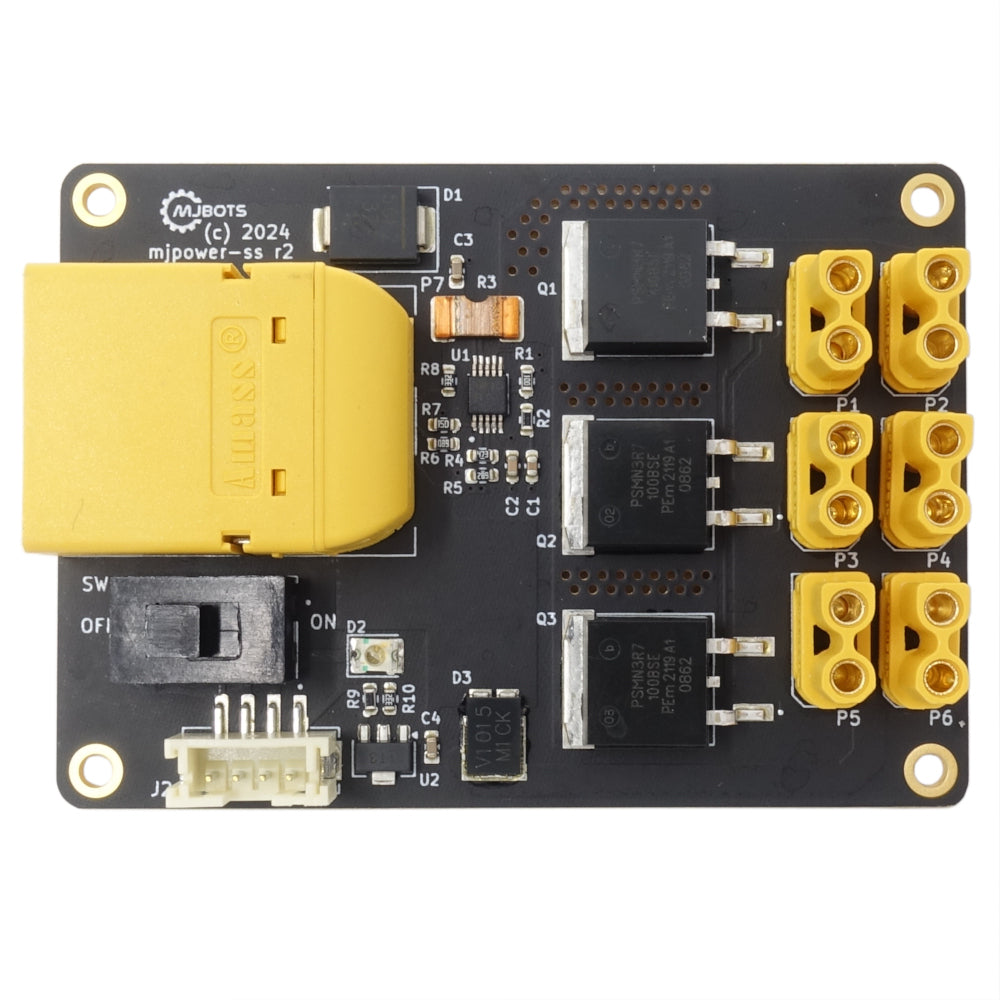

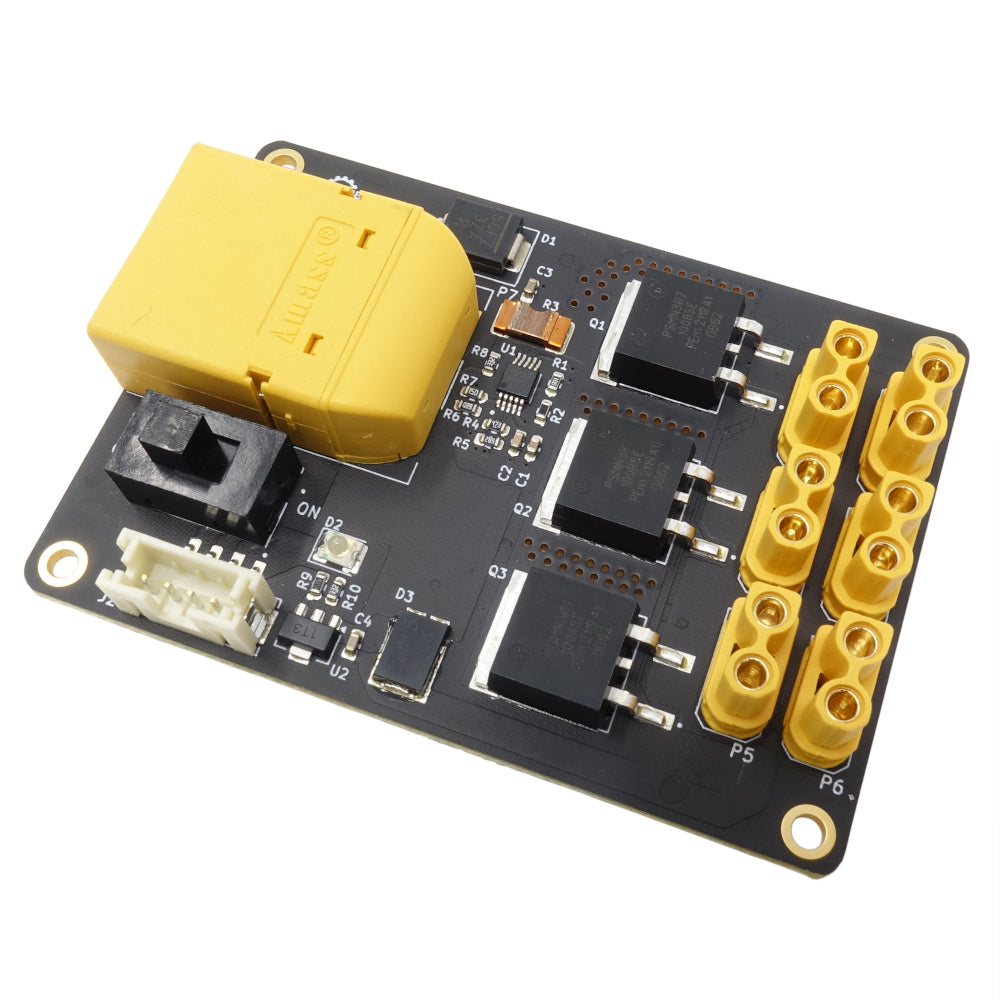

mjpower-ss

Provide power to your robot and safe pre-charging so that you can power up all those qdd100 servos (or we suppose some other high capacitance load), without letting out the magic smoke!

• Voltage input: 10-54V (<= 12S), XT90-M connector
• Current (continuous/peak): 45A/80A
• Max load capacitance: 4000uF
• Quiescent Current: 200uA
• Output: 6x XT30-F

• Dimensions: 50mm x 70mm
• Mass: 34.0g
• Switch options
  • Onboard slide switch (or)
  • Connector compatible with power_dist external illuminated switch
• Open source PCB: https://github.com/mjbots/power_dist

Includes:

• 6x Mating XT30U-M connectors
• 1x Mating XT90S-F connector

Optional accessories:

• Illuminated rocker switch to PH4 harness

Documentation:

• Reference manual: mjbots/power_dist docs/reference.md
• CAD Models: 2D Drawing / 3D STEP File
